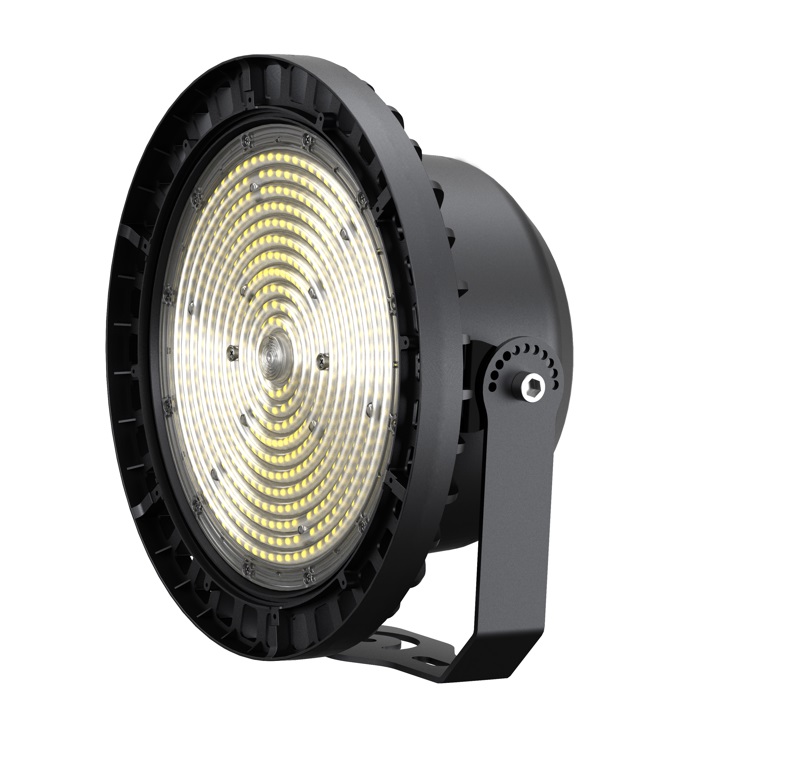

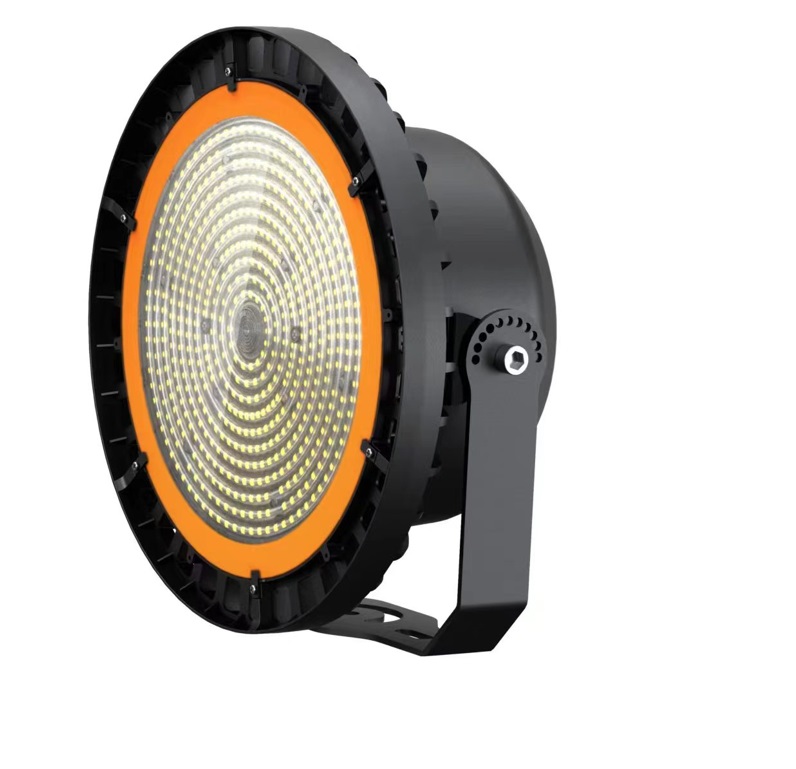

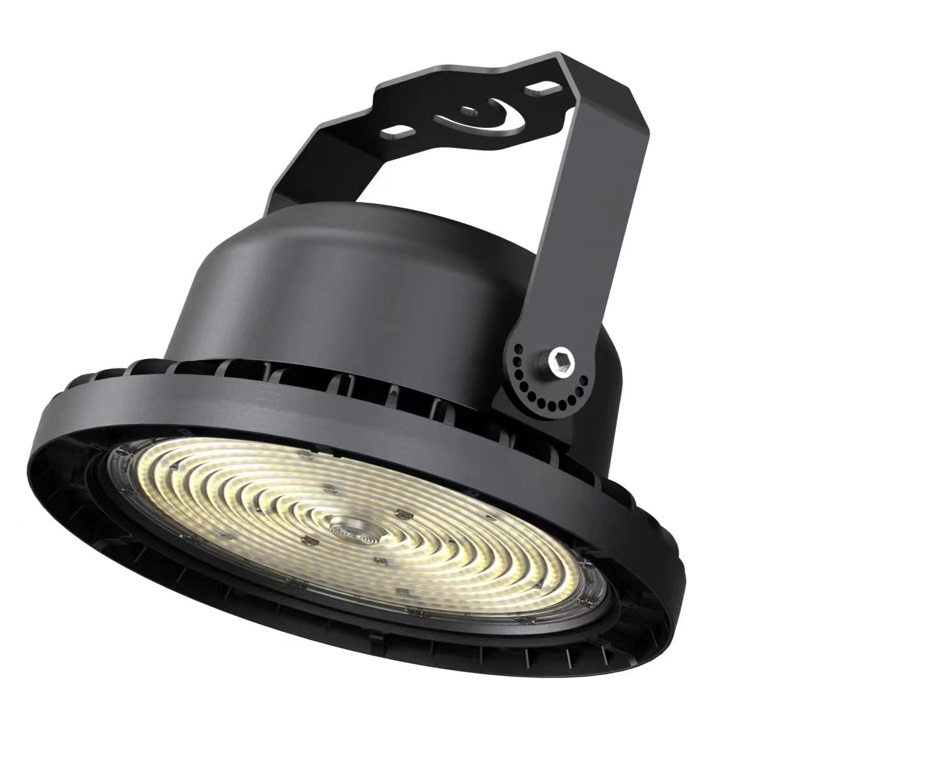

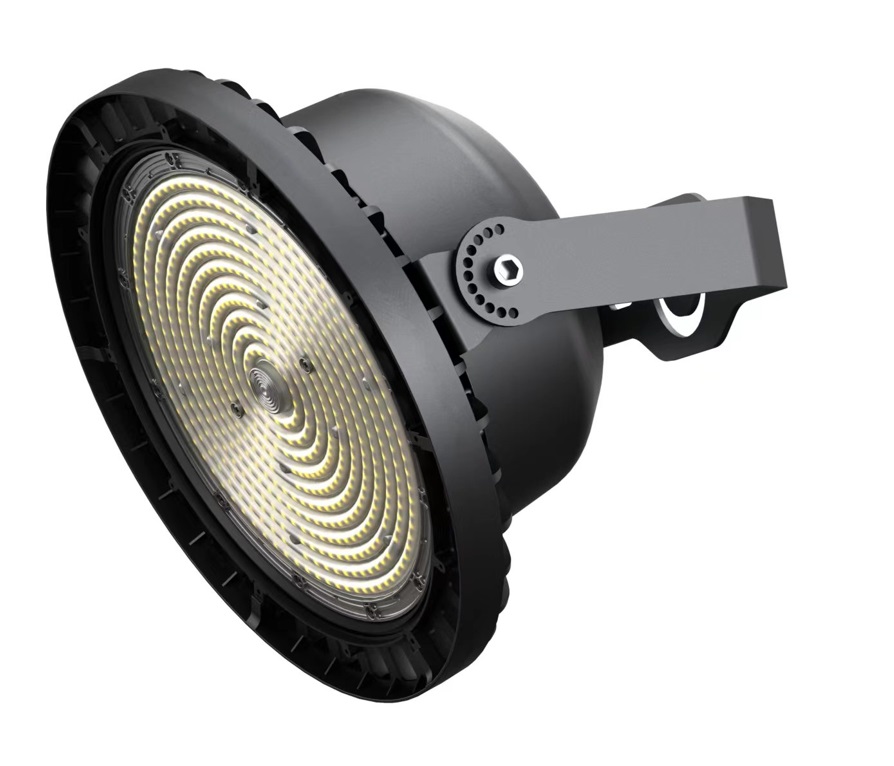

generation high power mining lamp
Key Features
Efficacy: 150 LM/W
Led brand:Phillip/AMTC
Driver: LiFud/MOSO
Beam Angle: 30°/60°/90°/120°
IP/IK Rated: IP65/IK08
Controls: daylight sensor/microwaveInstallation: Lifting/support
Warranty: 5 years
Product Certificate
ETL, DLC, SAA, CE, RoHS
Application
Courtyards, parks, hospitals, supermarkets, commercial lighting.
- Parameter
- Process flow
- Related products
- Inquiry
Parameter
 |
 |
 |
pecification of fourth generation high power mining lamp
|
SKU |
UHB-Ⅳ-300W |
UHB-Ⅳ-400W |
|
Watts |
300W |
400W |
|
Output Lumens |
45000 lm |
60000 lm |
|
Power Factor |
>0.95 |
|
|
Efficacy |
150 lm/w |
|
|
Input Voltage |
100-277 VAC |
|
|
CCT |
3000K-6500K |
|
|
CRI |
≥70 ( 80available as a special ) |
|
|
Housing Color |
Black |
|
|
Housing Material |
Aluminum, PC lens |
|
|
Working Environment |
-30°C ~ +50°C; 10%~90% RH |
|
|
Lifespan |
>50000 hrs |
|
|
Warranty |
5 years |
|
Packing specification
|
SKU |
PCS/CTN |
N.W |
G.W |
CBM |
|
UHB-Ⅳ-300W |
1 |
4.2kg |
4.8kg |
L405*W400*H180 mm |
|
UHB-Ⅳ-400W |
1 |
4.8kg |
5.4kg |
L405*W400*H180 mm |
Dimensioning (Unit:mm)
Product features
1.Thick: using patented design technology and heat dissipation materials, heat dissipation performance is fast.2. Multi-application, suitable for a variety of complex and changeable application occasions.
3. Professional heat dissipation structure, luminous heating position and radiator directly connected, greatly improve the heat dissipation performance, prolong the life of the whole lamp.
4. Large area integrated die-cast aluminum shell, integrated whole lamp heat dissipation
5. The appearance is simple and easy to install.
6. High protection: IP65 protection grade.
Attention:
1. Pls read the installation instruction carefully before installation;
2. The brown wire is live line (L), the blue wire is zero line (N) and the green yellow wire is earth line ( );
3. Do not close to the place where there is heat source, to prevent the damage of lamps due to high temperature;4. Ensure right wiring;
5. Do not remove lamps without permission;
6. Pls cut off the power source before installation or repair.
Process flow
1.Raw Material
2.SMT
3.Testing
4.Welding
5.Assembly
6.Aging Test
7.Testing
8.Packing
9.Warehouse
