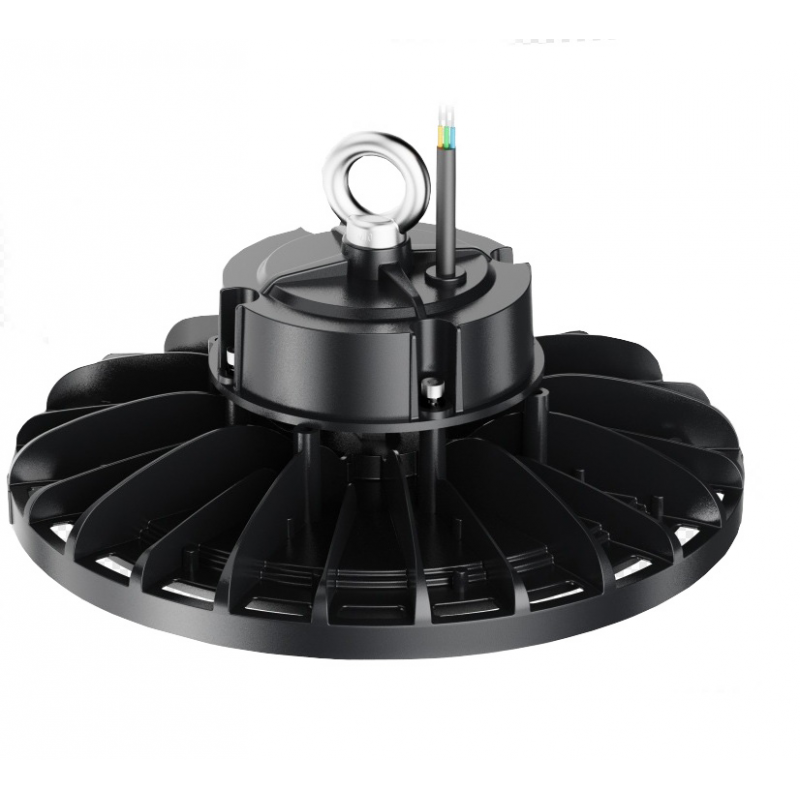

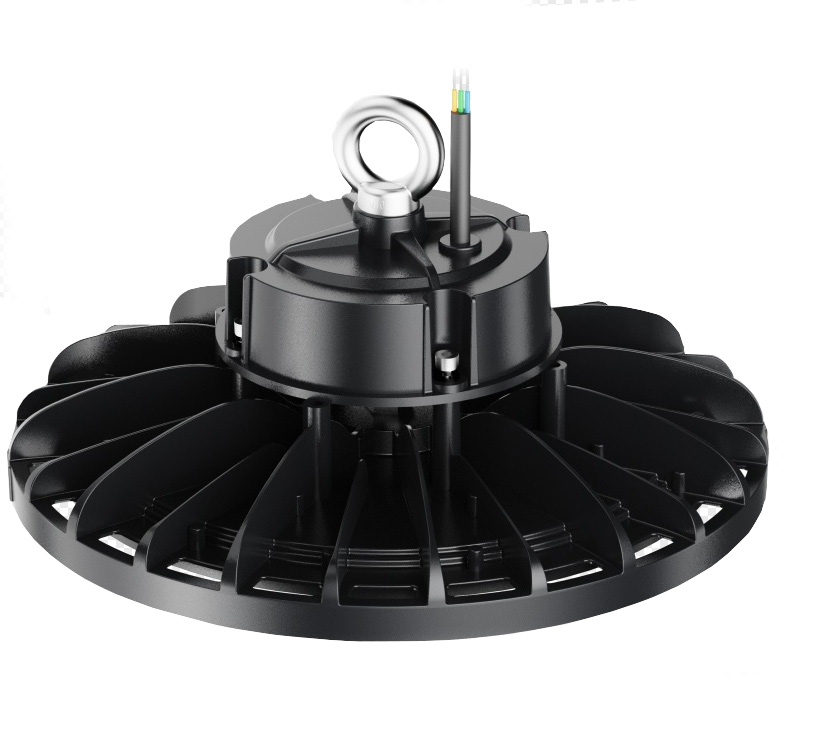

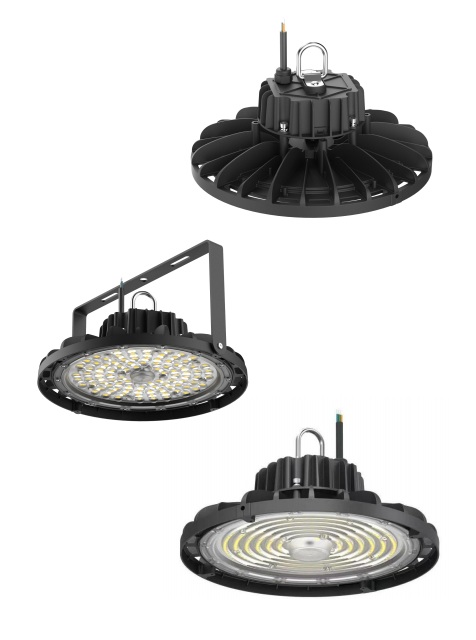

UHB Ⅳ High Bay Light

UHB Ⅳ High Bay Light Features:

Efficacy:Upto150Lm/W

LEDBrand:Philips/AMTC

driver:Lyford/MOSO

Beamangle:60°/90°/120°

IPrated:IP65

Controls:0-10VDimming/Microwave

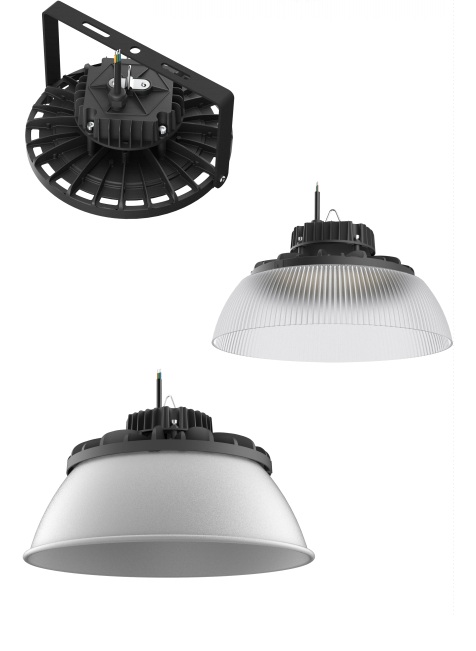

Installation:Hanginghook/Bracket

Warranty:5years

ProductCertificate

CE,RoHS,ETL

Application

Warehouses,libraries,workshops,shoppingmalls,

supermarkets,shops,restaurants,sportscenters,

cinemas,hospitals,clothing

stores,barsandotherindoorlightingplaces.

Inquiry

Parameter
Process flow
Related products
Inquiry

Parameter

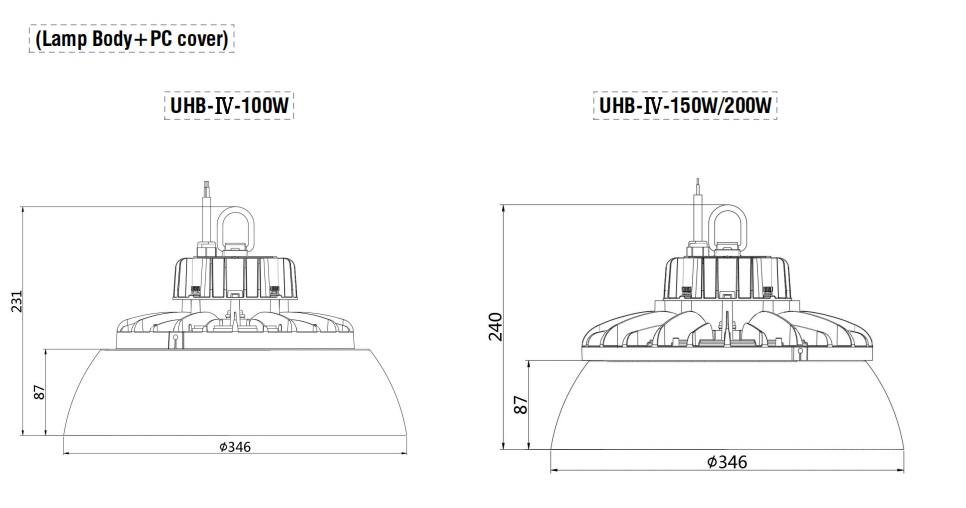

UHBⅣHigh Bay Light Datasheet

ProductSpecifications

SKU	UHB-Ⅳ-100	UHB-Ⅳ-150	UHB-Ⅳ-200	UHB-Ⅳ-240
Watts	100W	150W	200W	240W
InitialLuminousFlux	15000lm	22500lm	30000lm	36000lm
LuminousEfficiency	150lm/W
PowerFactor	>0.95
InputVoltage	176-264VAC/110-277VAC
CCT	3000K-6500K
CRI	≥70

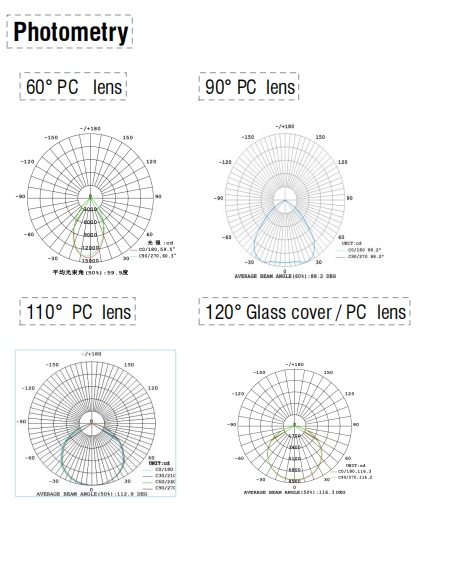

BeamAngle	60°/90°/120°
HousingColor	Black
HousingMaterial	Aluminum,PC&Glas
WorkingEnvironment	-30°Cto+50°10%to90%R
Lifespan	>50000hrs
Warranty	5years

PackingInformation-（Independentpacking）

SKU	PCS/CTN	N.W	G.W	Volume
UHB-Ⅳ-100W	1	1.5KG	1.8KG	L270W270H155mm
UHB-Ⅳ-150W	1	2.0KG	2.4KG	L310W310H160mm
UHB-Ⅳ-200W	1	2.4KG	2.8KG	L350W350H165mm
UHB-Ⅳ-240W	1	2.4KG	2.8KG	L350W350H165mm

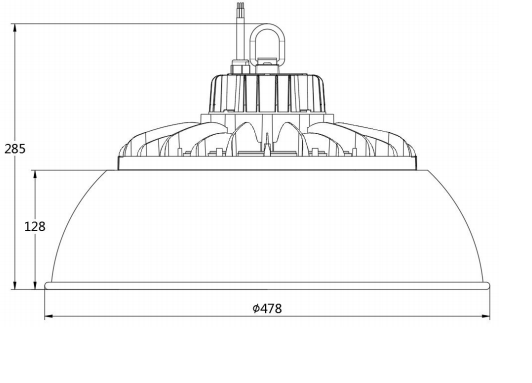

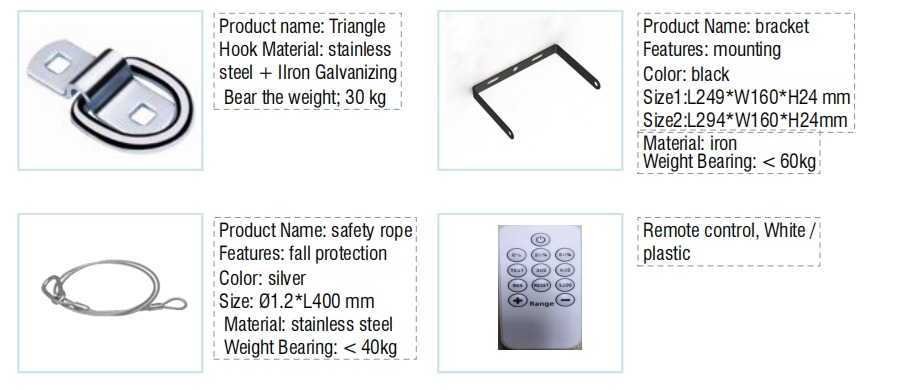

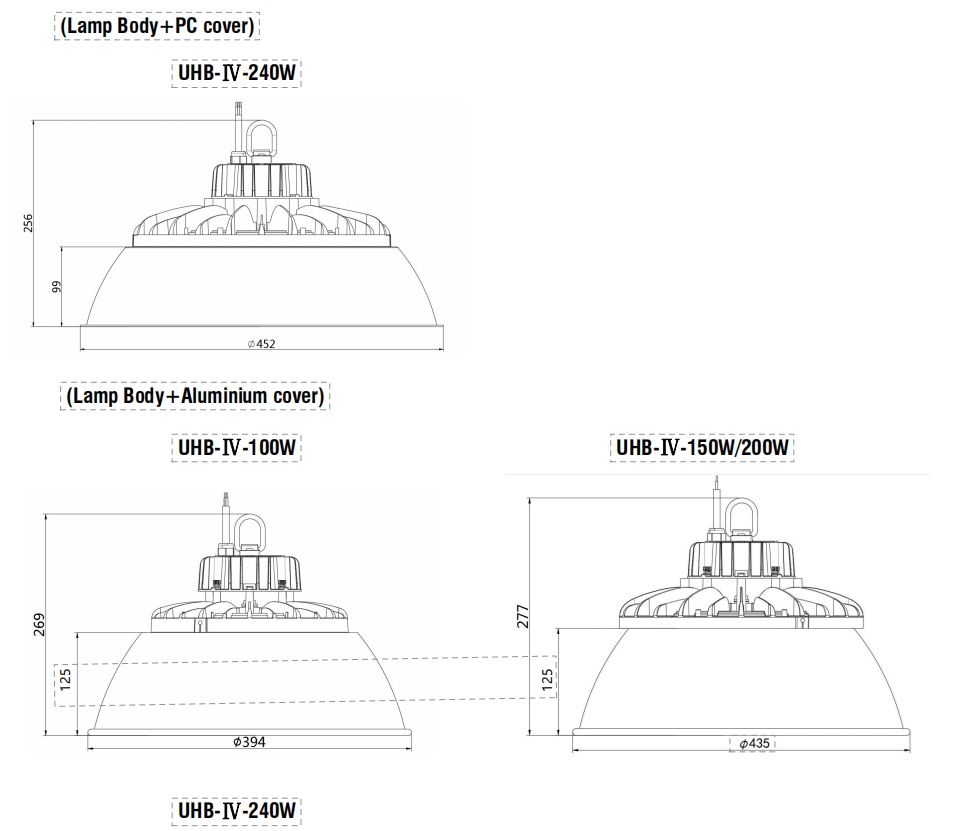

MountingAccessories：

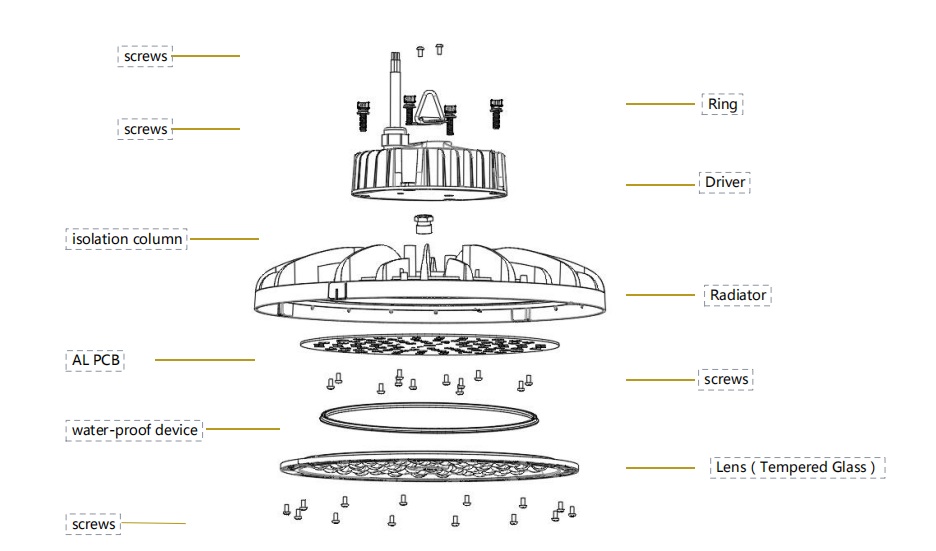

ExpiosionDiagram:

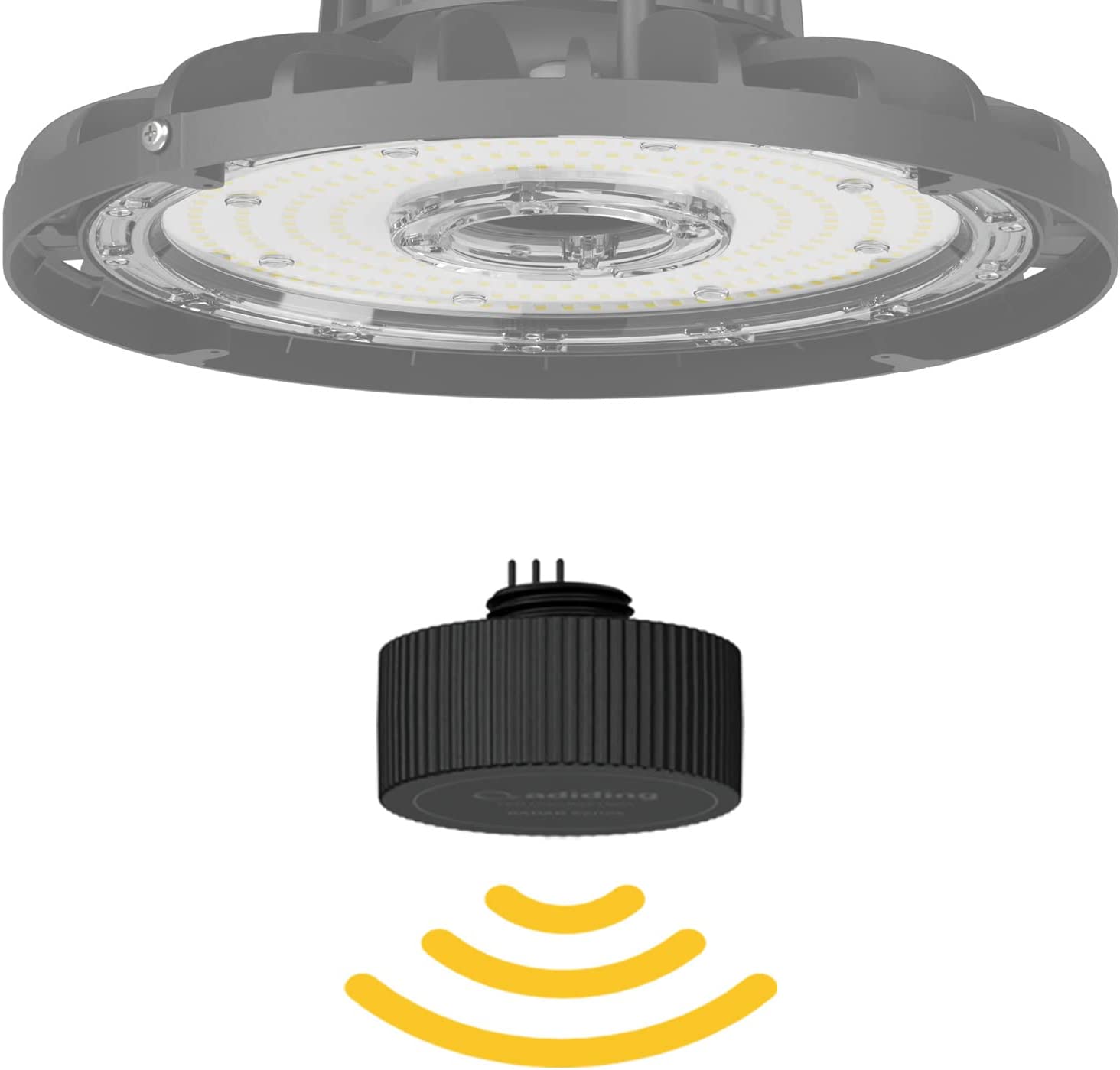

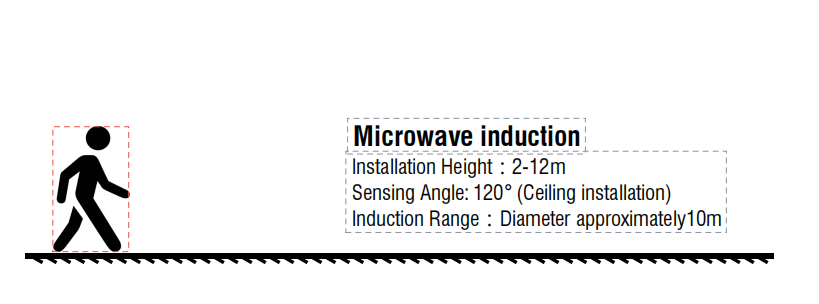

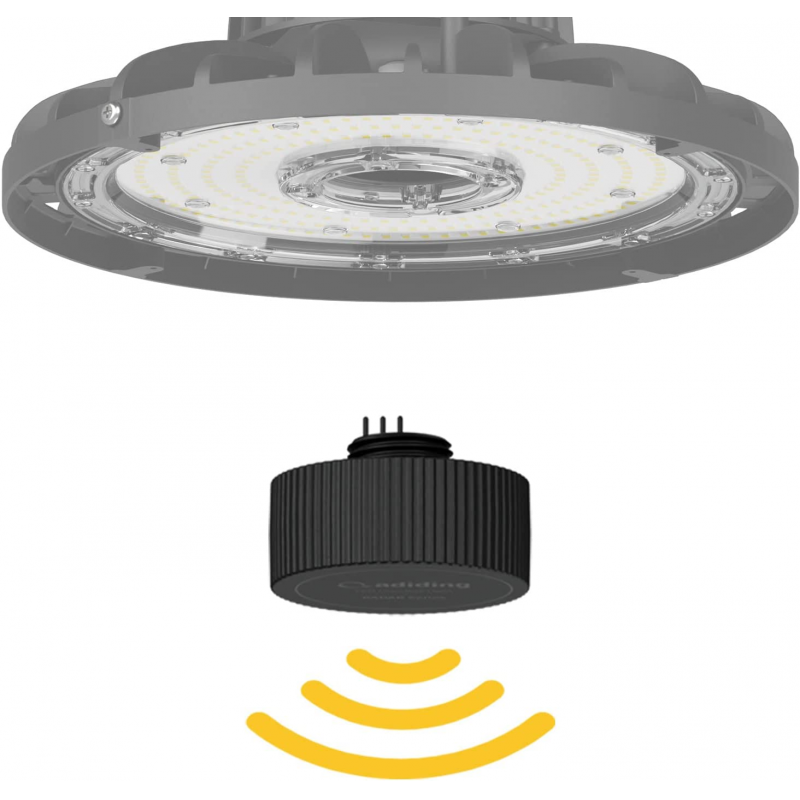

Microwave sensor sindicate

Not recommended for outdoor use.Rain can triggerit by mistake.

They becomeless responsive to objects movingat constant speed.

No vibrationin the moun ting position.

Require power supply ripple less than100mv.

The range and angle of the sensor will be affected by the surrounding environment

Microwaves have apene trating effect, but not throug hrein forced concrete walls or metal objects

Single core wire is recommended for terminal

Installation:

Install expansion bolt or hook in advance at the locaton where high bay is to be installed(Load capacity of expansion bolt or hook is three times greater than the weight of high bay).

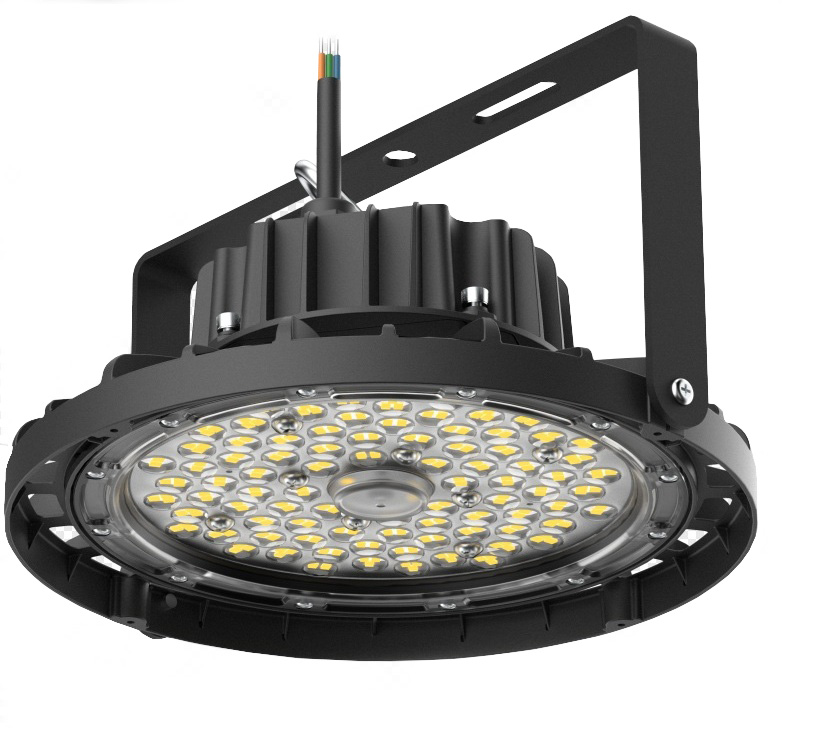

put the bracket of fixture into the pre-fited expansion bolts and tighten the screws.

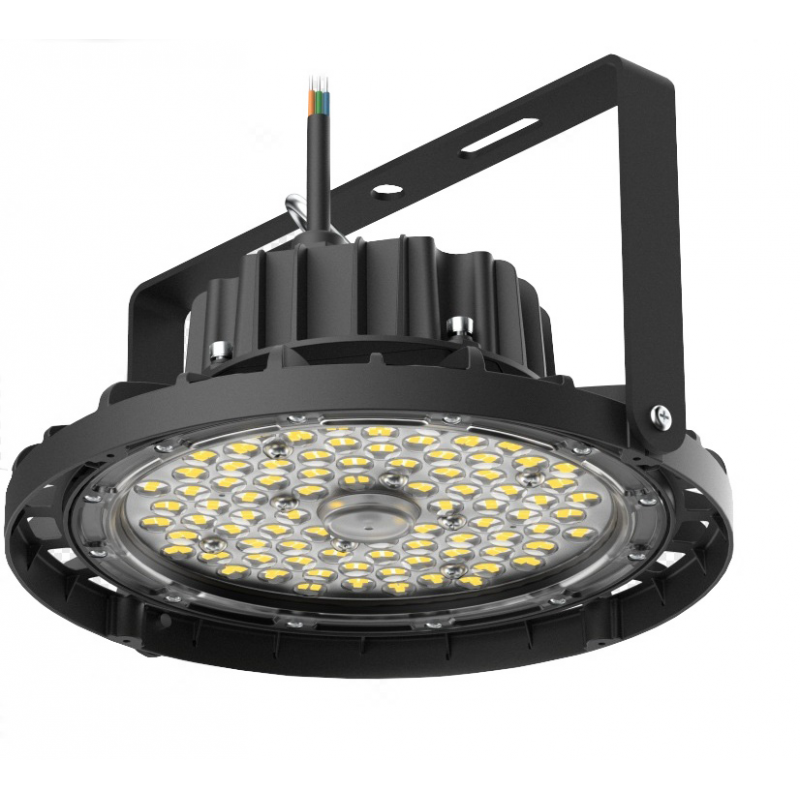

fix screws and adjust the fixture to the angle you need (the angle of rotation of the bracket is 120°.

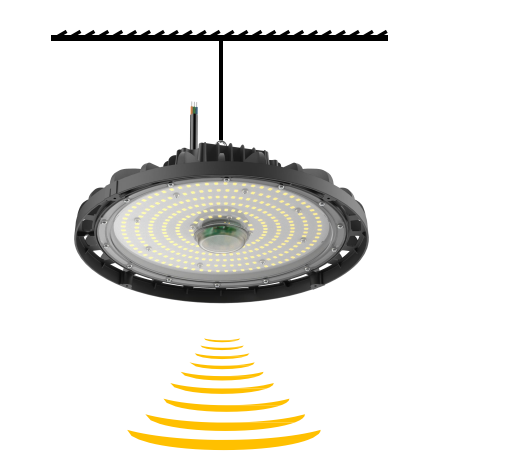

suitable for hook & hanging chain installation.

1.Please read the installation instruction carefully before installation;

2. Teh brown wire is live line (L), the blue wire is zero line (N) and the green yellow wire is earth line

3. Do not close to the place with heat source to prevent damaging the UFO for high temperature;

4. Ensure right wiring;

5. Do not disassemble the UFO without permission

6. Please cut off the power source before installation or repair.
