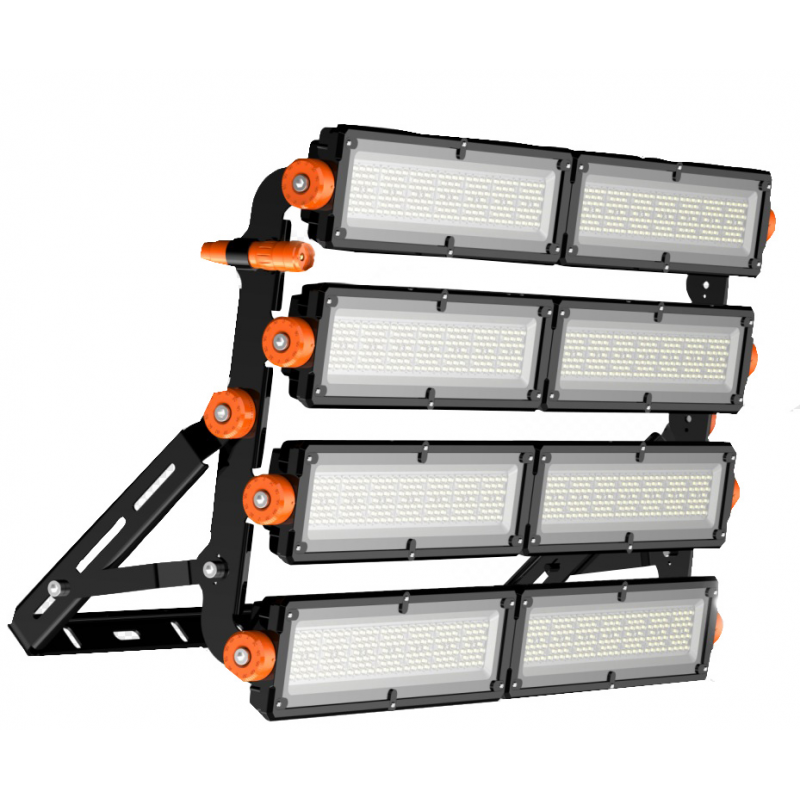

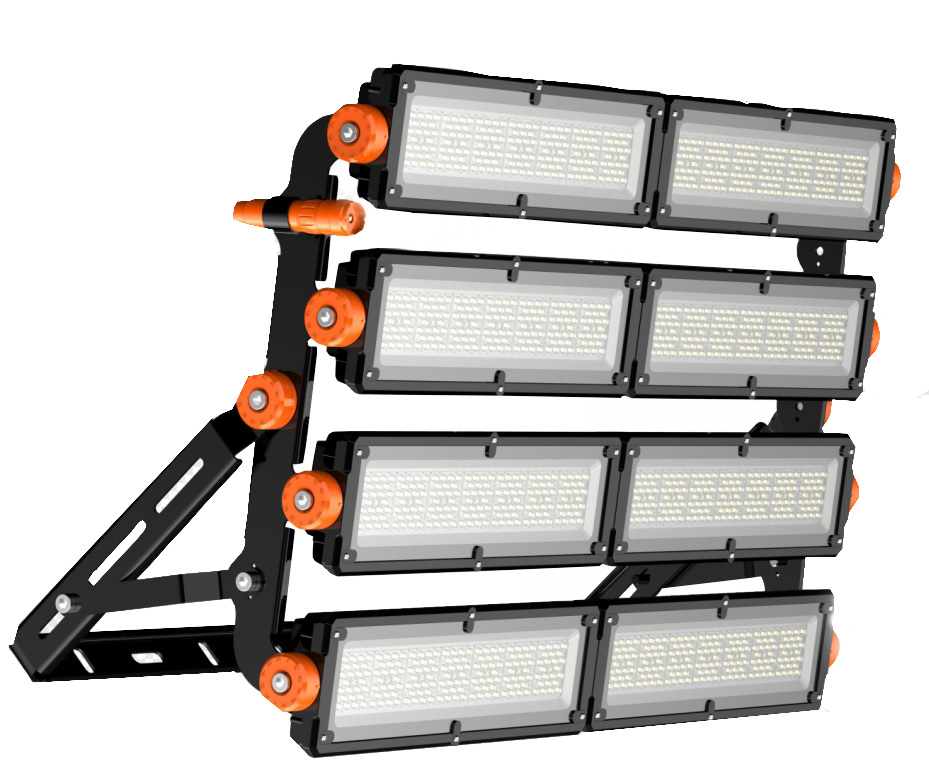

Industry LED light

Specification parameter

SKU	TL-100	TL-200	TL-300	TL-400
Watts	100W	200W	300W	400W
Output Lumens	15000LM	30000LM	45000LM	60000LM
Power Factor	>0.95
Efficacy	150 lm/w
Input Voltage	100-277 VAC
CCT	3000K-6500K
CRI	≥70 ( ≥80 )
Housing Color	Black / gray
Housing Material	Aluminum, PC lens，Glass
Working Environment	-30°C ~ +50°C; 10%~90% RH
Lifespan	>50000 hrs
Warranty	5 years

Packaging parameter

SKU	PCS/CTN	N.W	G.W	CBM
TL-100	1	2.9kg	2.2kg	L 205XW 505XH 135 MM
TL-200	1	6.3kg	6.8kg	L 360XW 540XH 145 MM
TL-300	1	9.2kg	9.8kg	L 510XW 540XH 150 MM
TL-400	1	12.2kg	12.8kg	L 660XW 540XH 150 MM

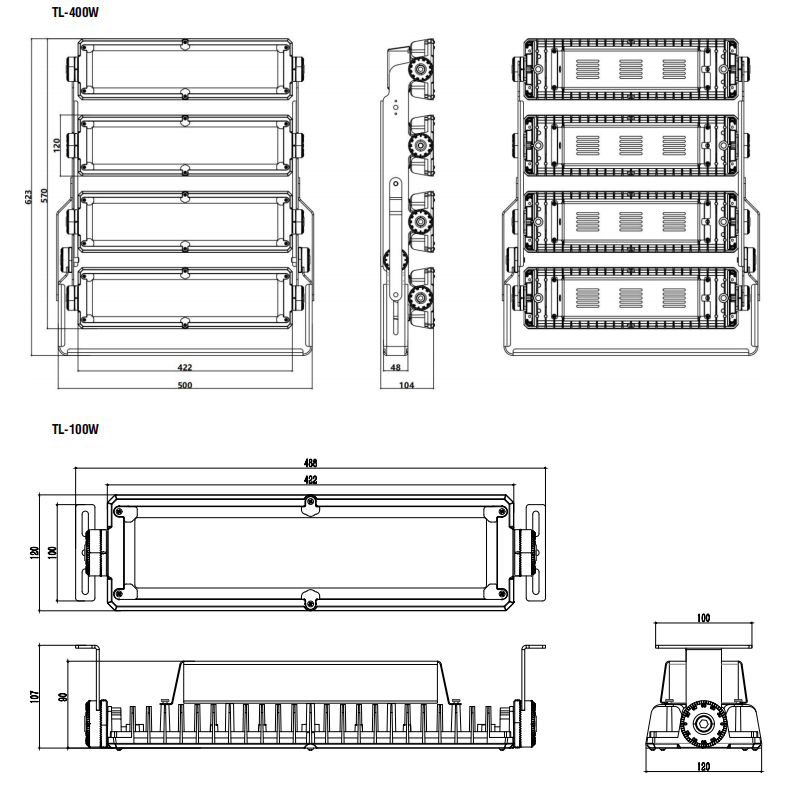

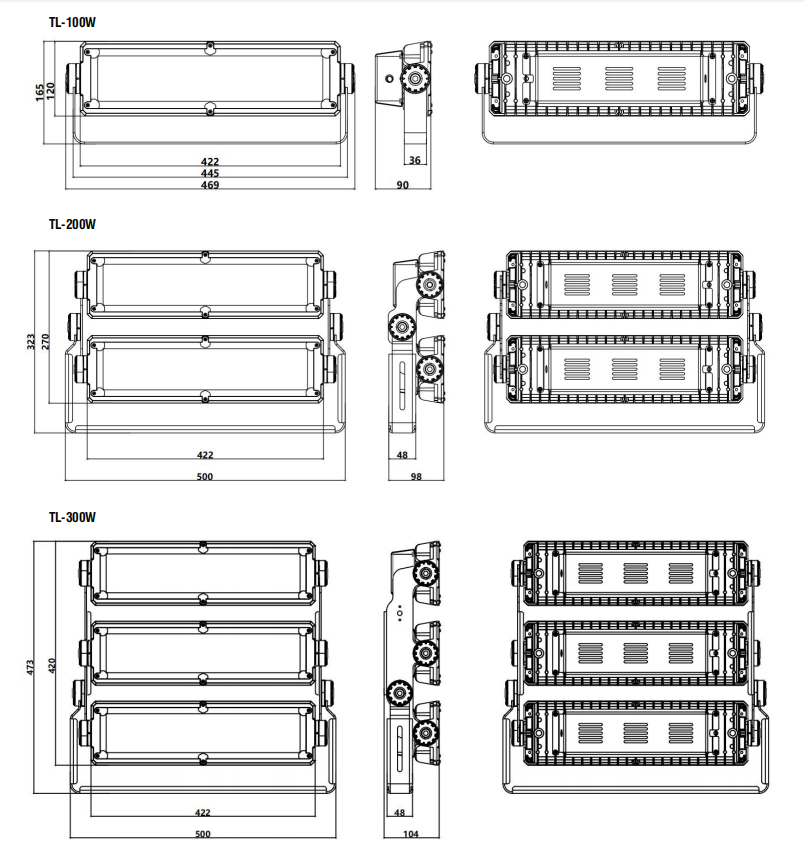

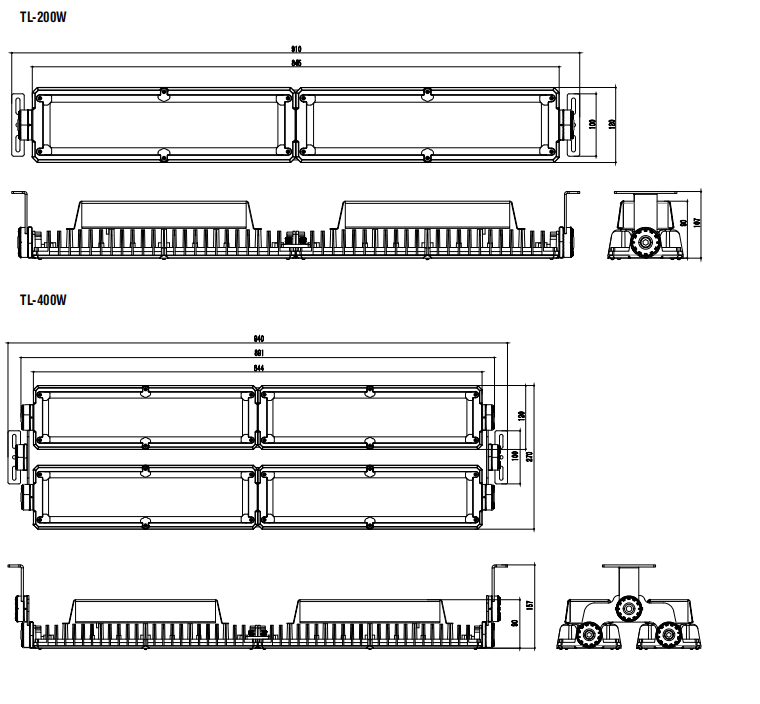

Dimensioning (Unit:mm)

Dimensioning (Unit:mm)

Dimensioning (Unit:mm)

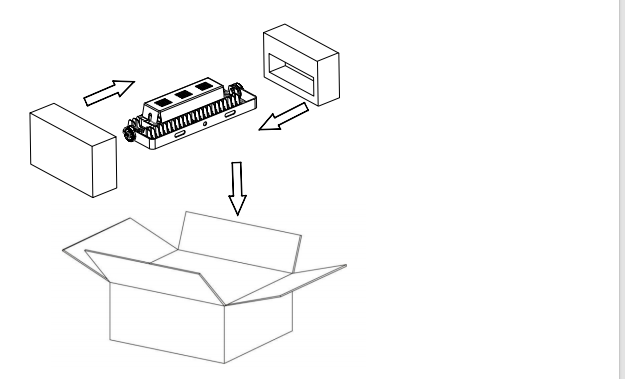

Packing Details

Product features

1.Thick: using patented design technology and heat dissipation materials, heat dissipation performance is fast.

2. Multi-application, suitable for a variety of complex and changeable application occasions.

3. Professional heat dissipation structure, luminous heating position and radiator directly connected, greatly

improve the heat dissipation performance, prolong the life of the whole lamp.

4. Large area integrated die-cast aluminum shell, integrated whole lamp heat dissipation

5. The appearance is simple and easy to install.

6. High protection: IP65 protection grade.

Attention:

1. Pls read the installation instruction carefully before installation;

2. The brown wire is live line (L), the blue wire is zero line (N) and the green yellow wire is earth line ( );

3. Do not close to the place where there is heat source, to prevent the damage of lamps due to high temperature;

4. Ensure right wiring;

5. Do not remove lamps without permission;

6. Pls cut off the power source before installation or repair
