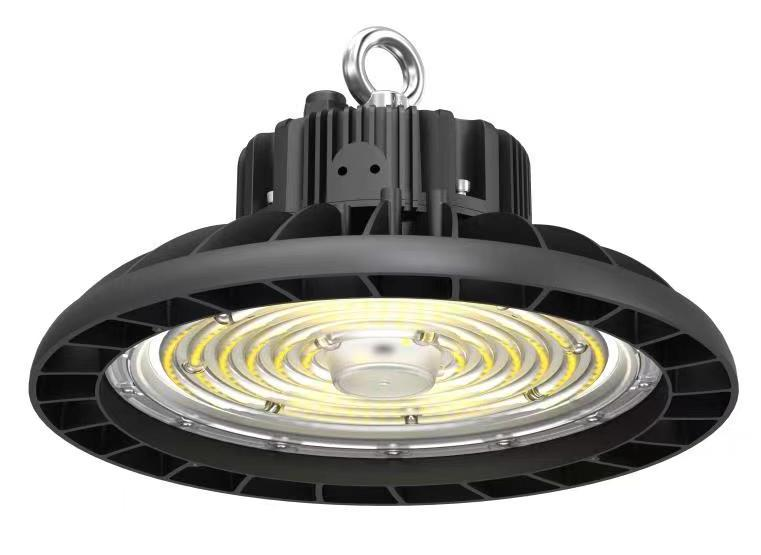

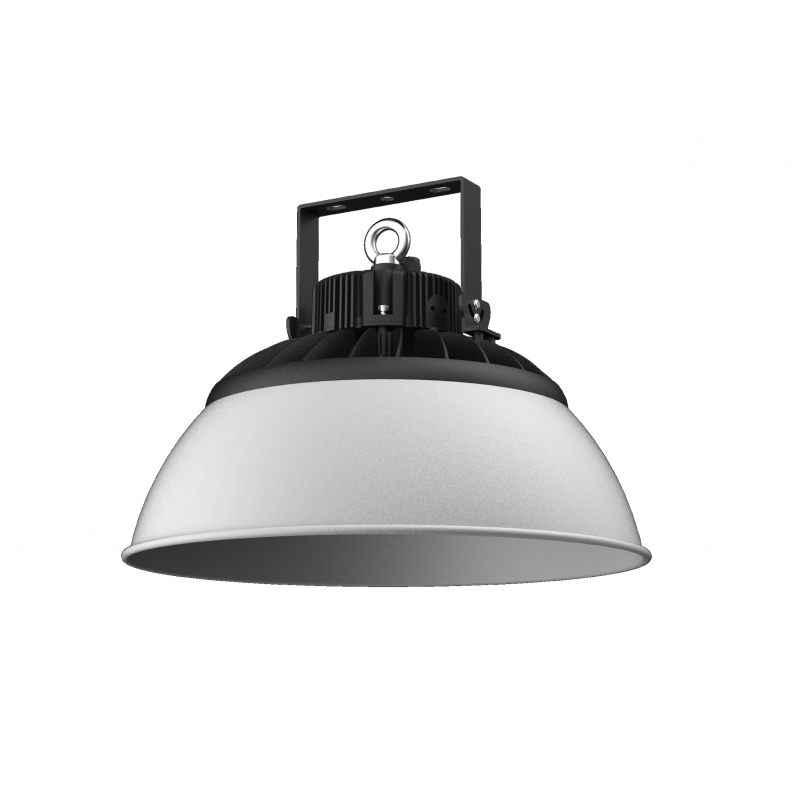

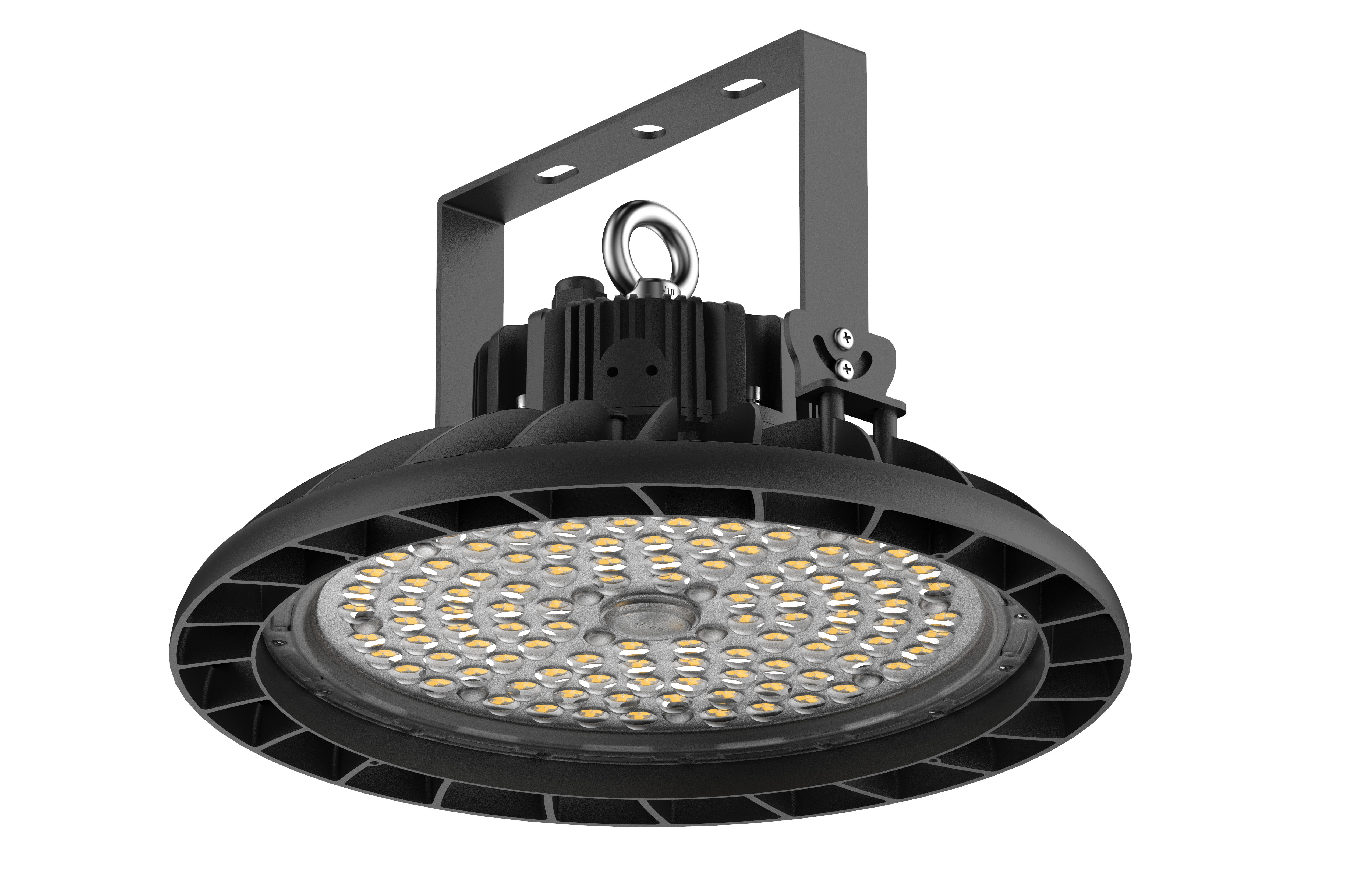

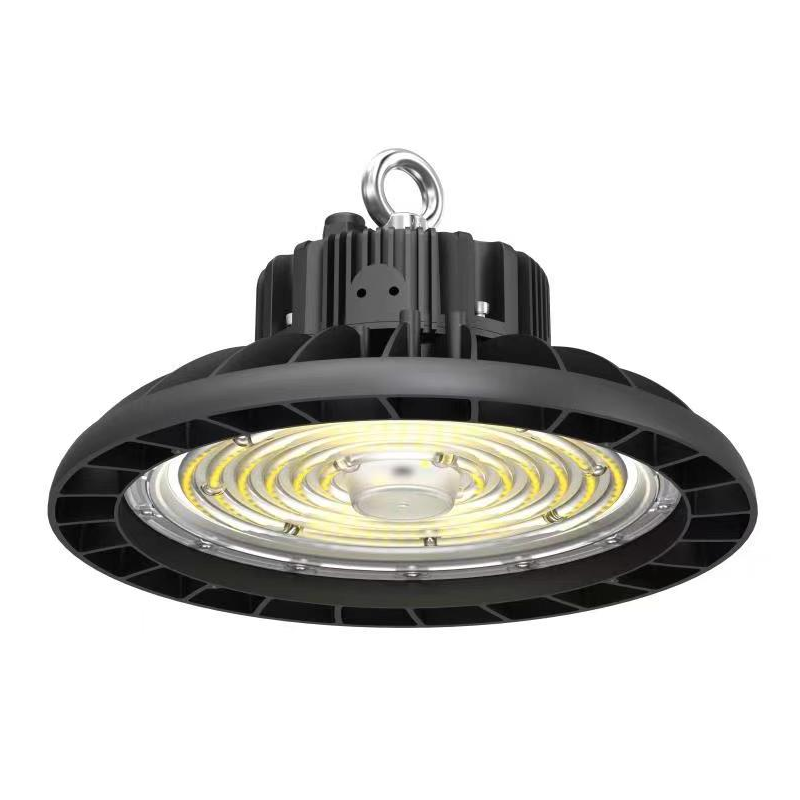

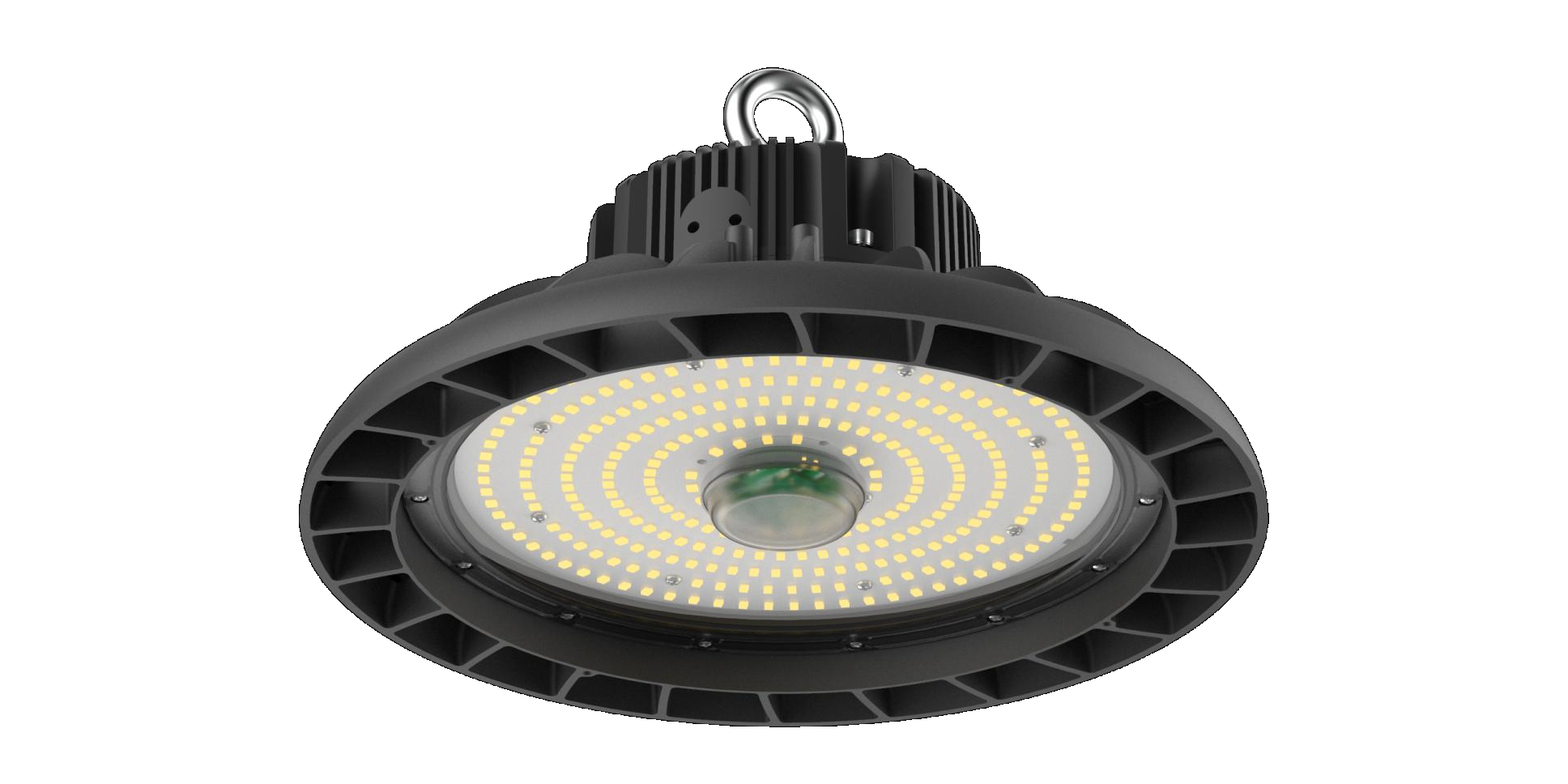

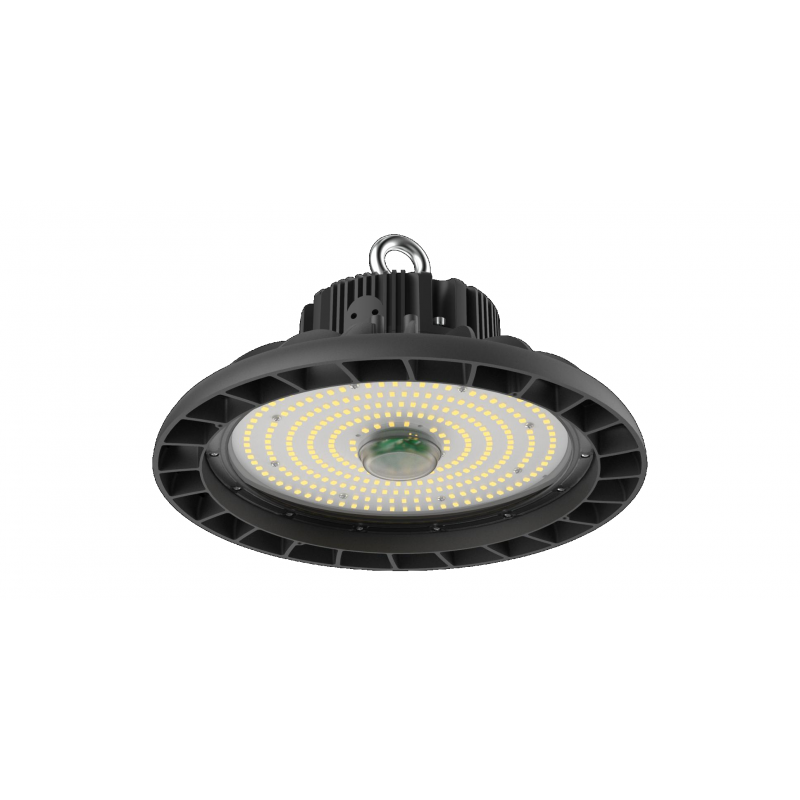

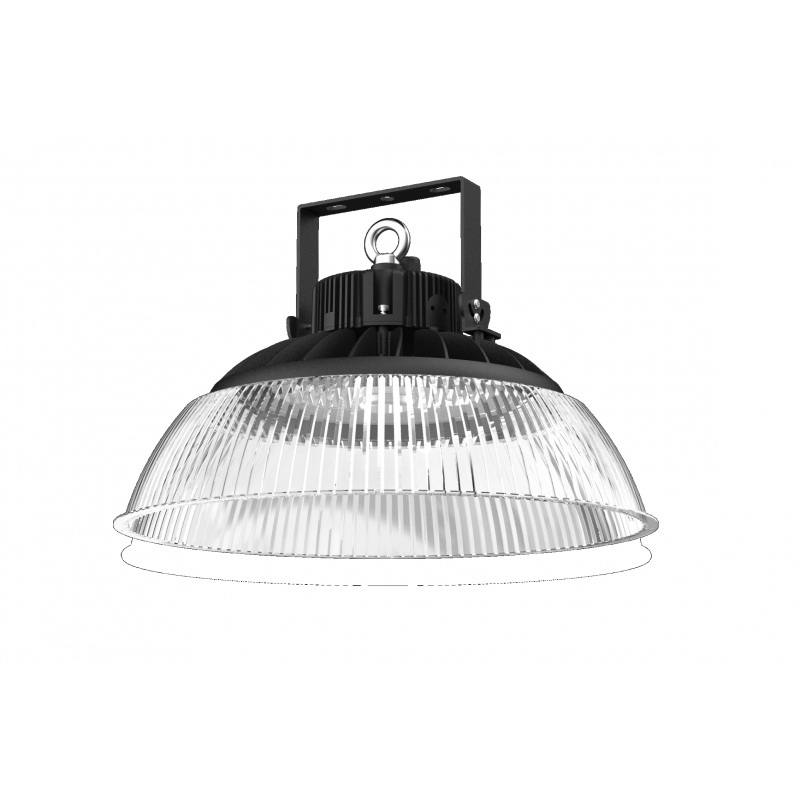

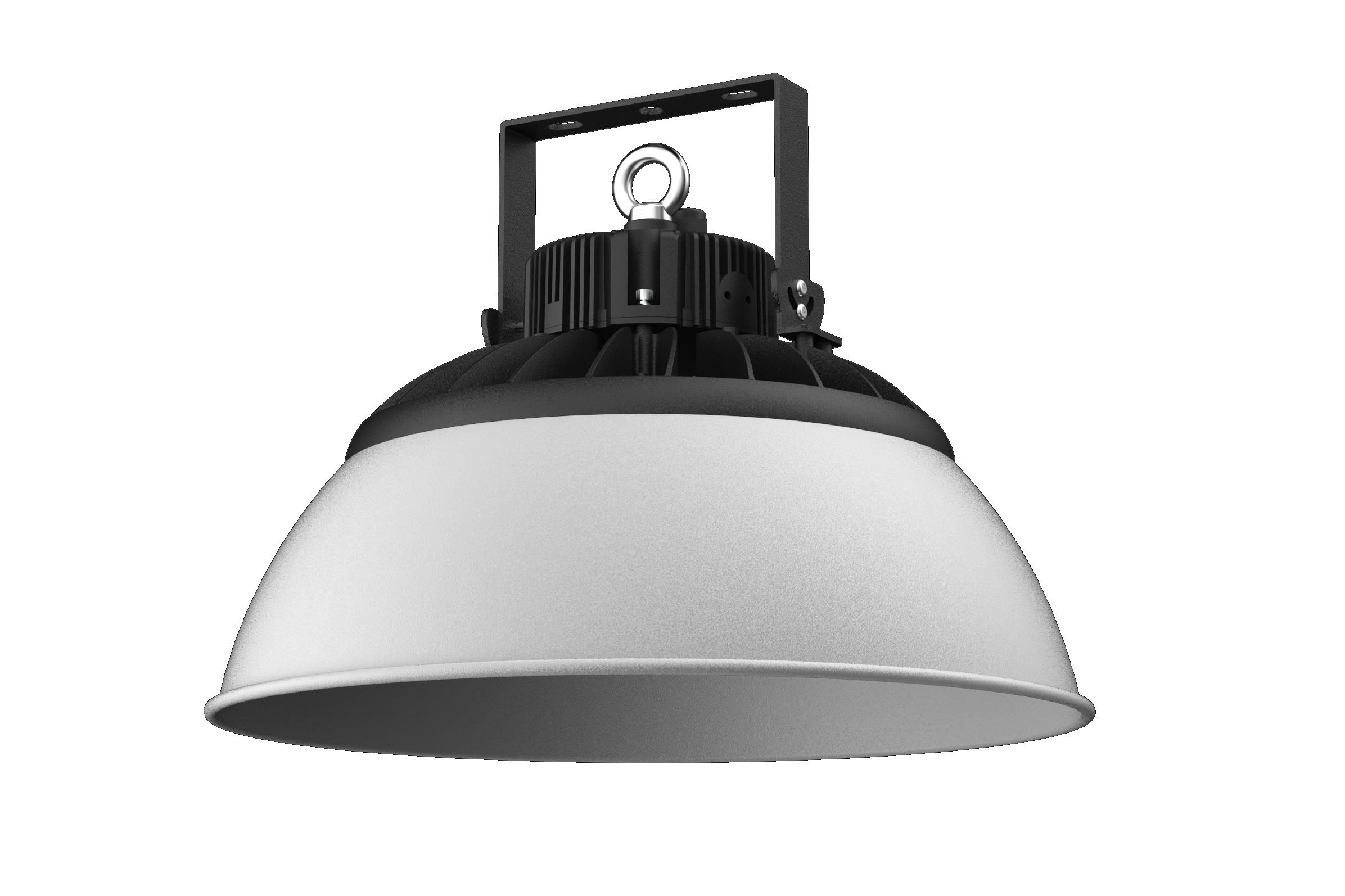

Die cast aluminum housing high bay light

Die cast aluminum housing high bay light

Key Features

Efficacy: Up to 140 Lm/W LED chip: Philips

LED driver: Meanwell

Beam angle: 60°/90°/110°/120°

IP rated: IP65 Controls:1-10V

Dimming/Microwave/Zigbee system

Installation: Hanging hook/Bracket Warranty:5 years

Product Certificate

CE,RoHS

Application

Warehouses, libraries, workshops, shopping malls, supermarkets, shops, restaurants, sports centers, cinemas, hospitals, clothing

stores, bars and other indoor lighting places.

Inquiry

Parameter
Process flow
Related products
Inquiry

Parameter

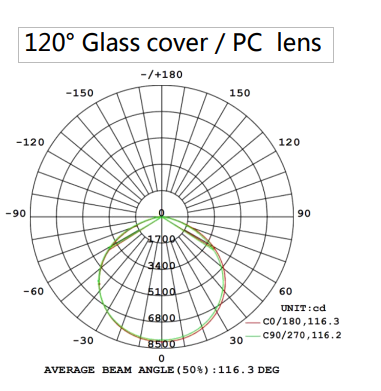

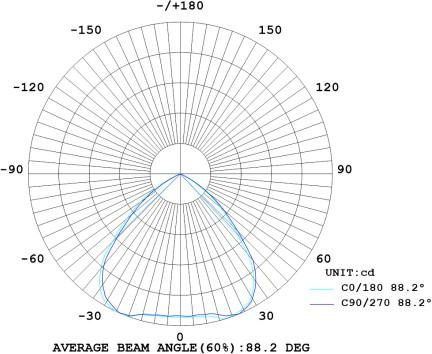

	Application

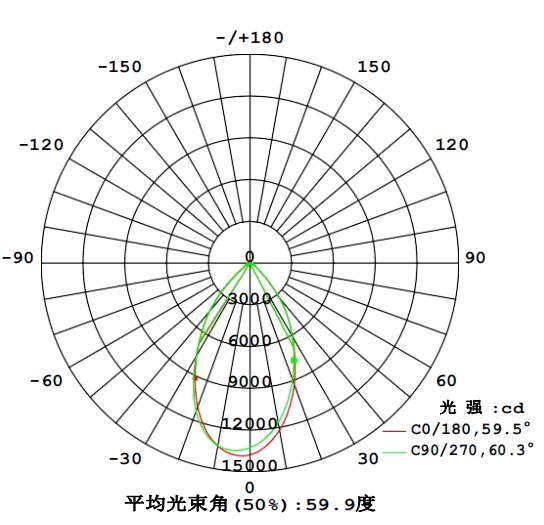

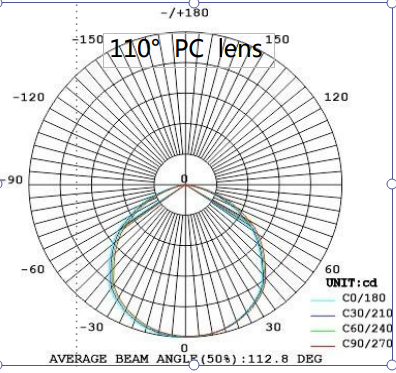

	Warehouses, libraries, workshops, shopping malls, supermarkets, shops, restaurants, sports centers, cinemas, hospitals, clothing stores, bars and other indoor lighting places. Photometry

Product Specifications

SKU
Watts	100W	150W	200W
Flux (Test data by 5000K)	15000lm	22500lm	30000lm
Luminous Efficiency Power Factor	150 lm/w >0.95	150 lm/w >0.95	150 lm/w >0.95
Input Voltage	176-264 VAC	176-264 VAC	176-264 VAC
CCT	4000K/5000K/5700K	4000K/5000K/5700K	4000K/5000K/5700K
CRI	>80	>80	>80
Beam Angle	60°/90°/110°/120°	60°/90°/110°/120°	60°/90°/110°/120°
Housing Color	Black	Black	Black
Housing Materia	Aluminum, PC & Glass	Aluminum, PC & Glass	Aluminum, PC & Glass
Working Environment	30°C to +50°C 10% to 90% RH	30°C to +50°C 10% to 90% RH	30°C to +50°C 10% to 90% RH
Lifespan	>50000 hrs(LM80)	>50000 hrs(LM80)	>50000 hrs(LM80)
Warranty	5 years	5 years	5 years

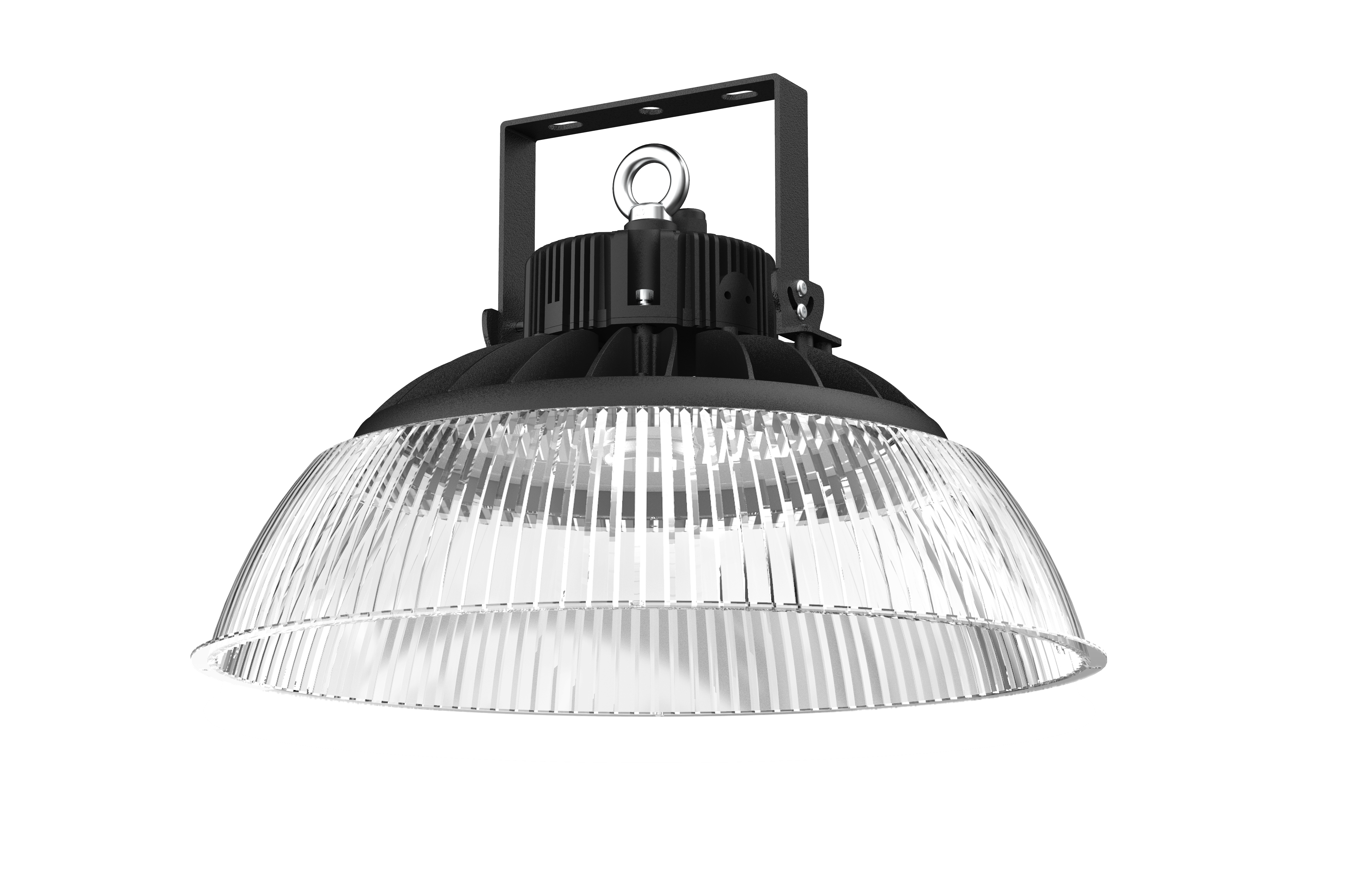

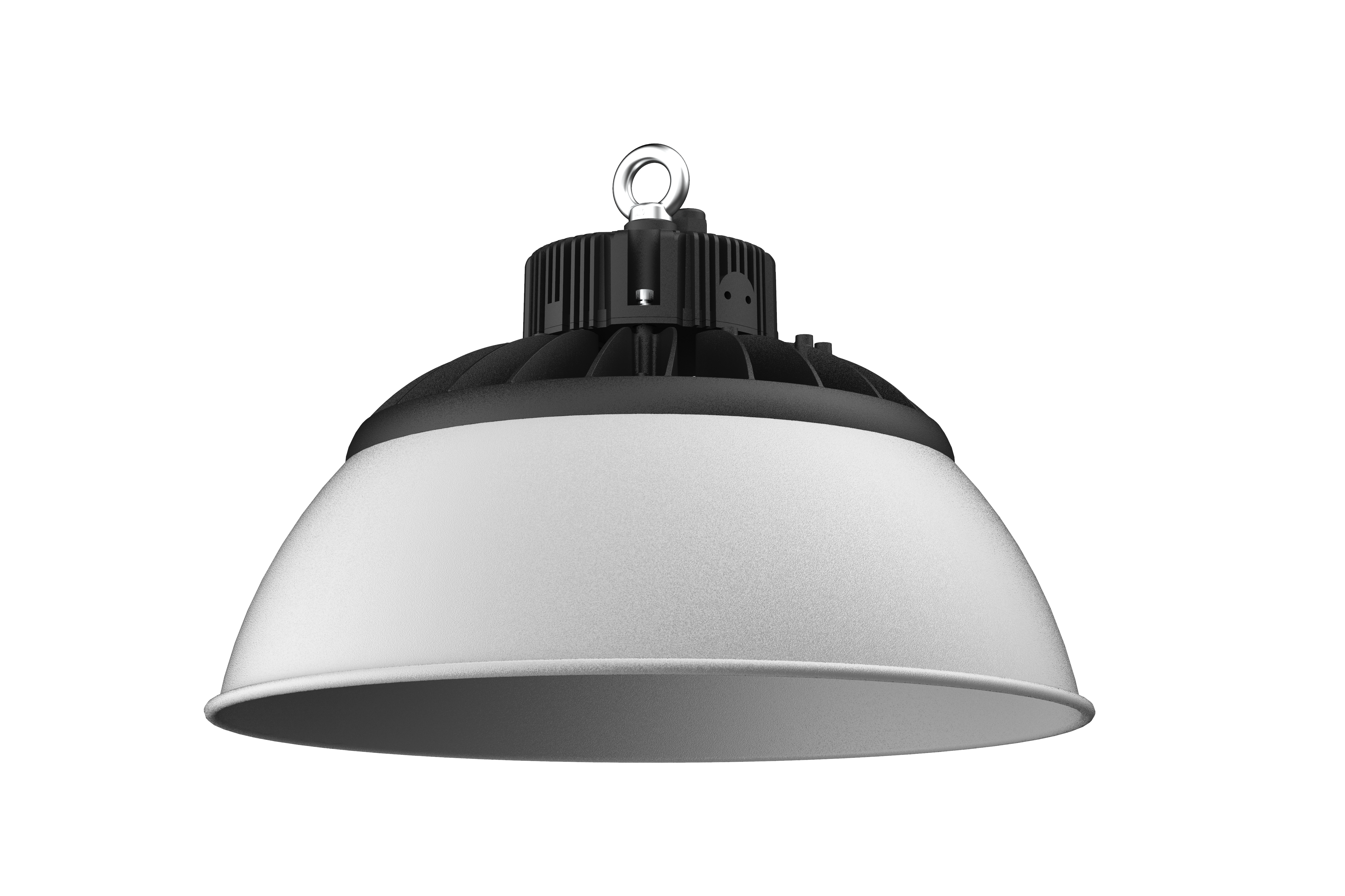

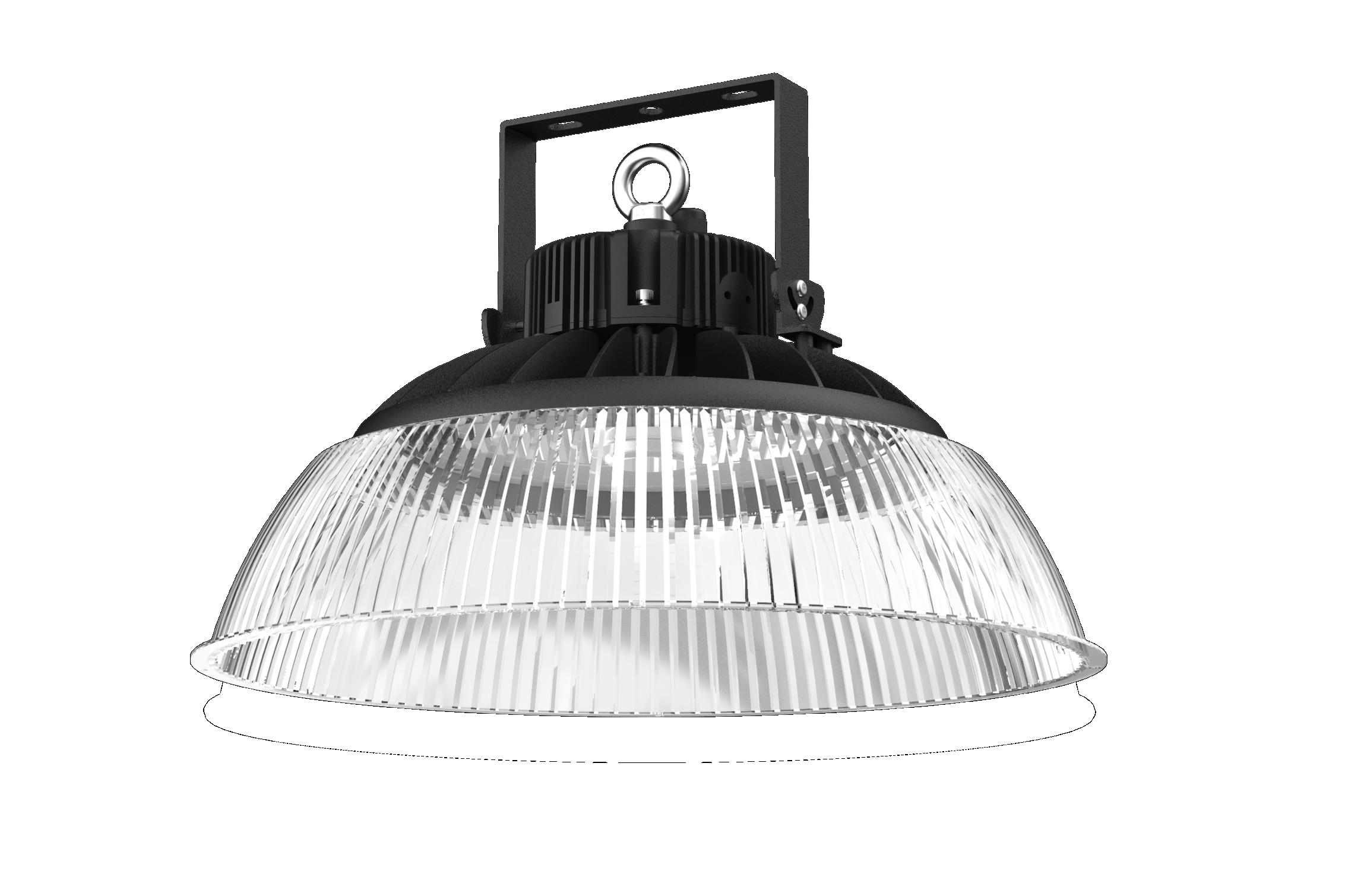

Packing Information (and reflector

SKU	PCS/CTN	Net Weight	Grass Weight	Dimension Weight	CBM
100W	1	1.5kg	2.7kg	3.0kg	L310W310H160 mm
150W	1	2.5kg	3.8kg	4.1kg	L355W355H180 mm
240W	1	3.1kg	4.5kg	5.0kg	L395W395H185 mm

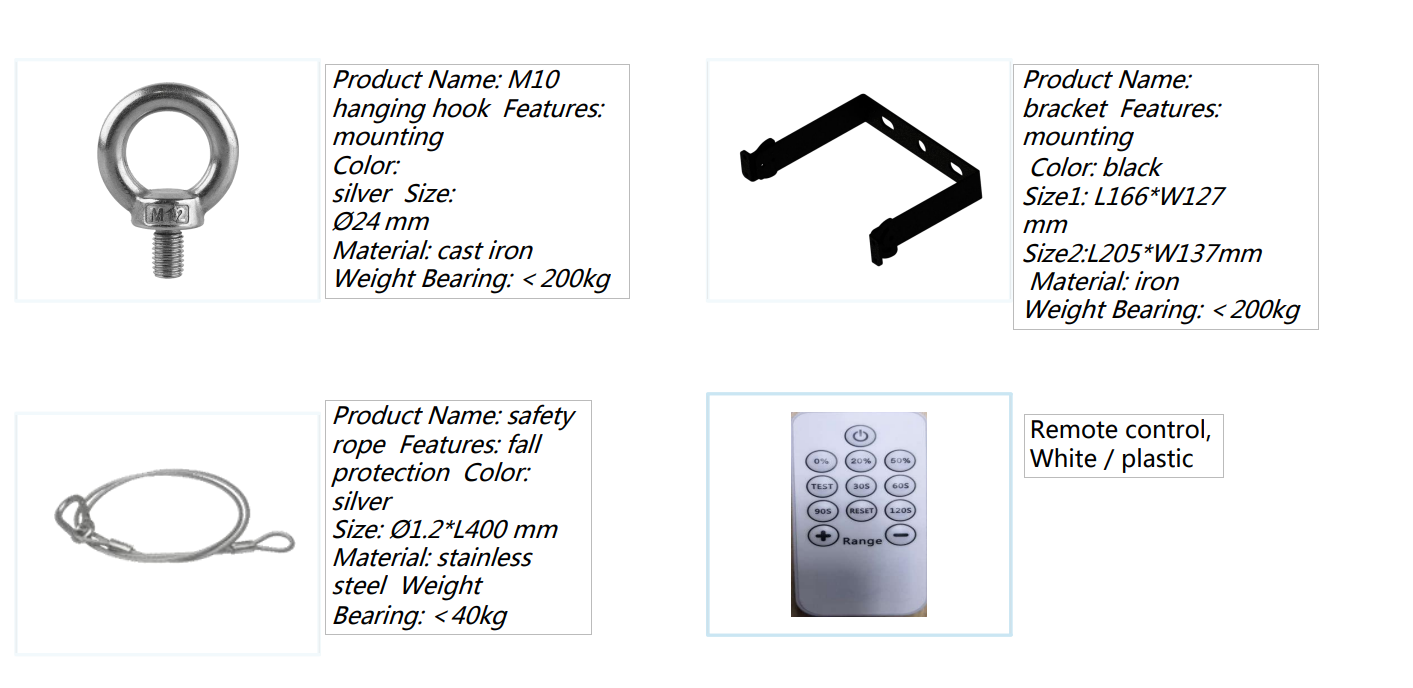

Mounting Accessories

UFO high bay light Mounting Accessories

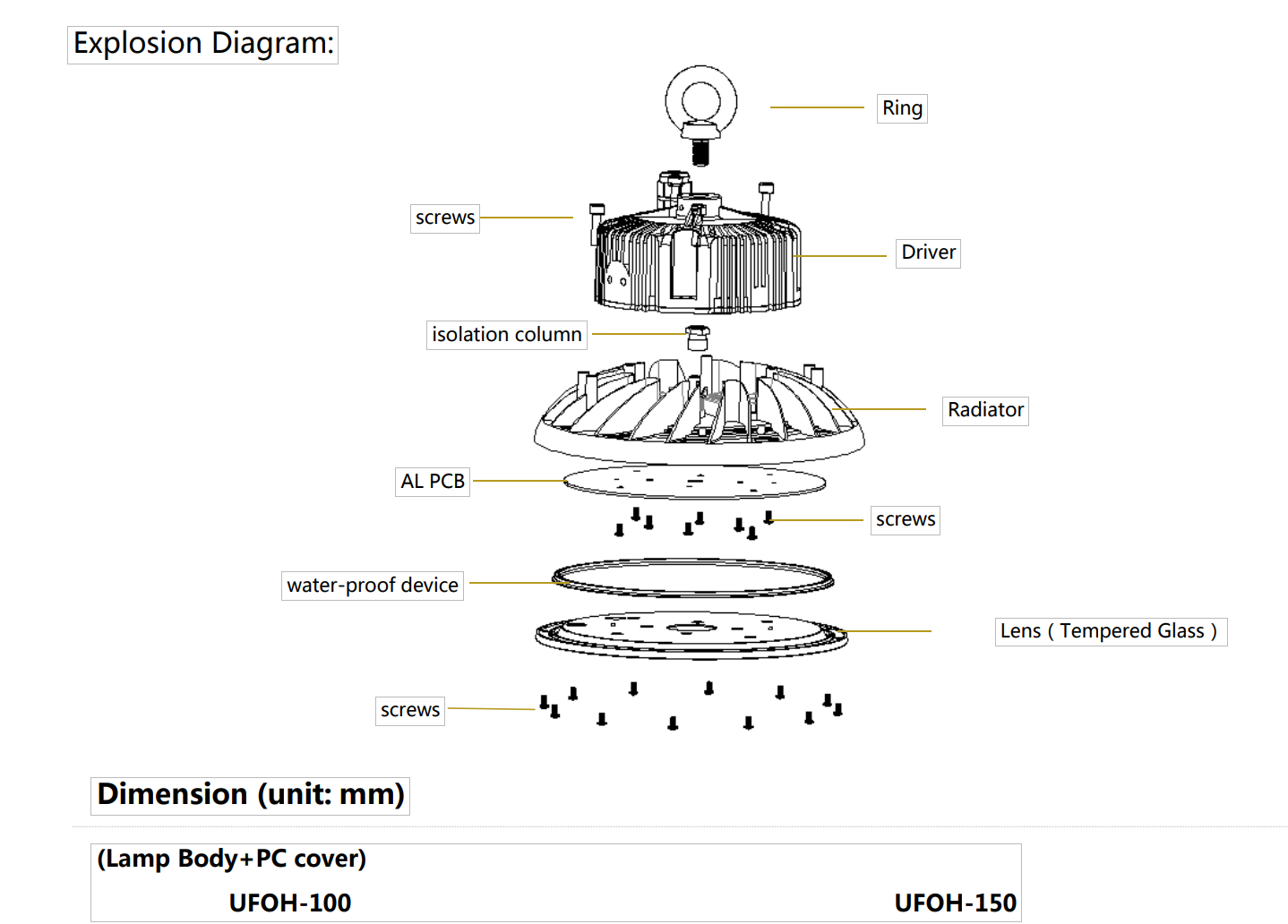

Ⅲ High Bay Datasheet

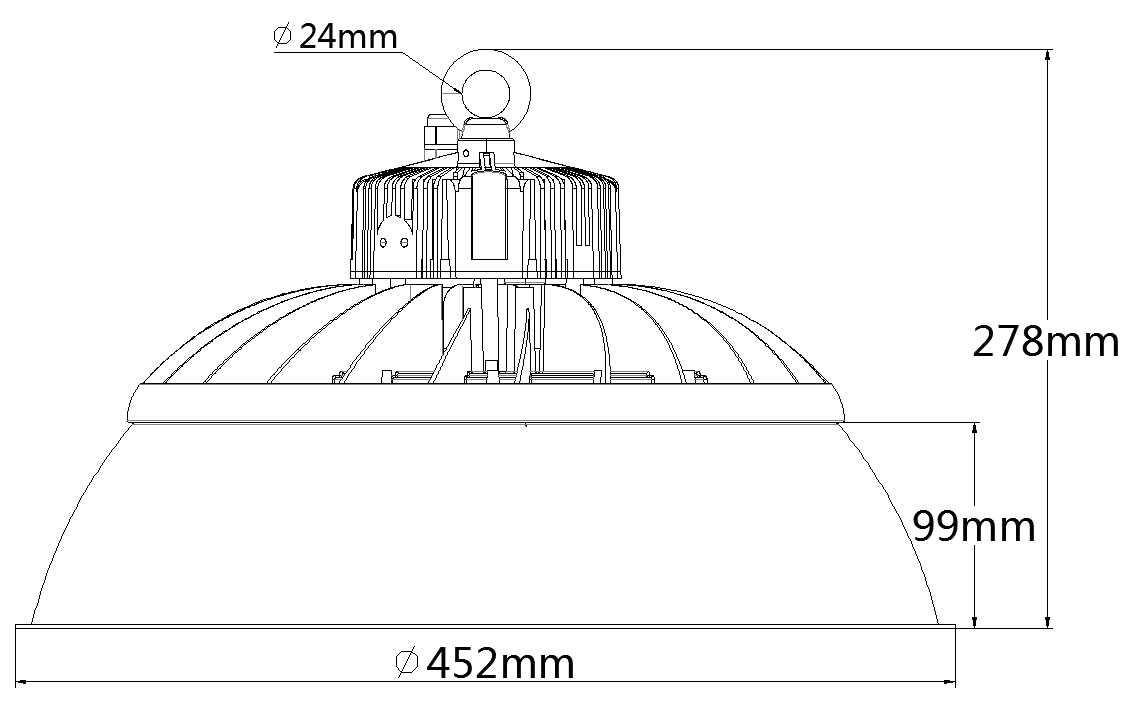

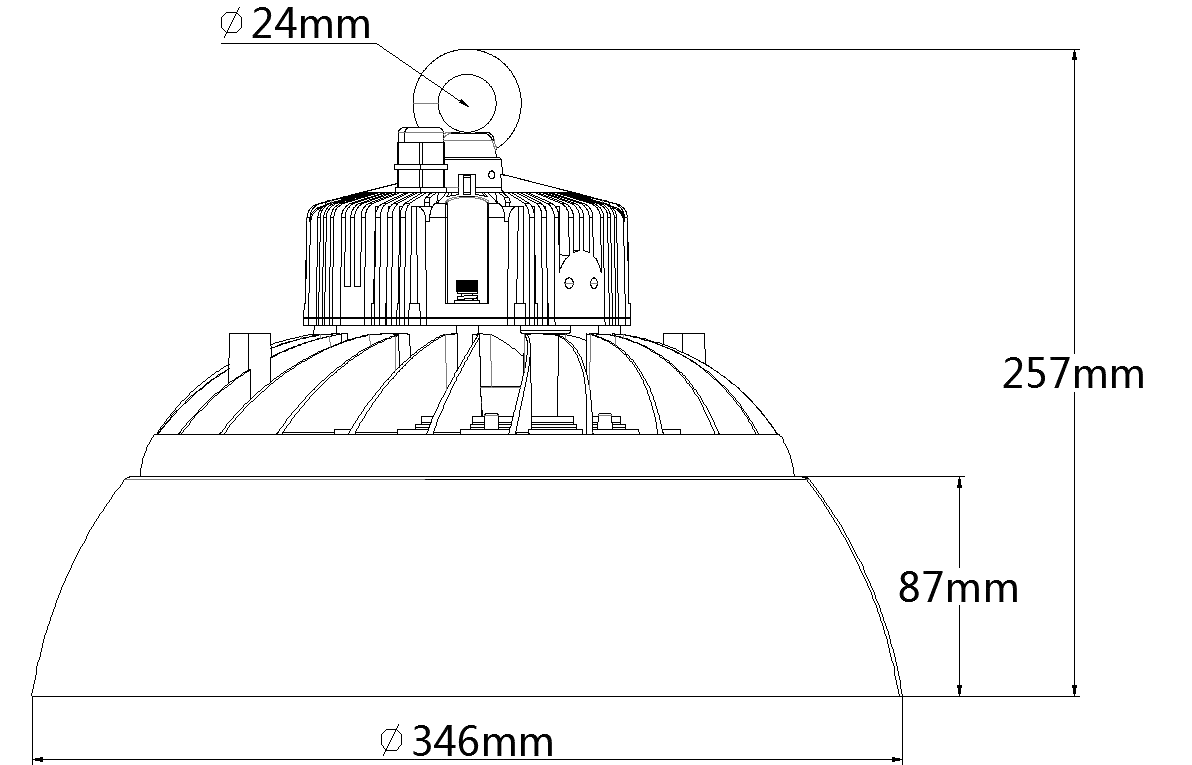

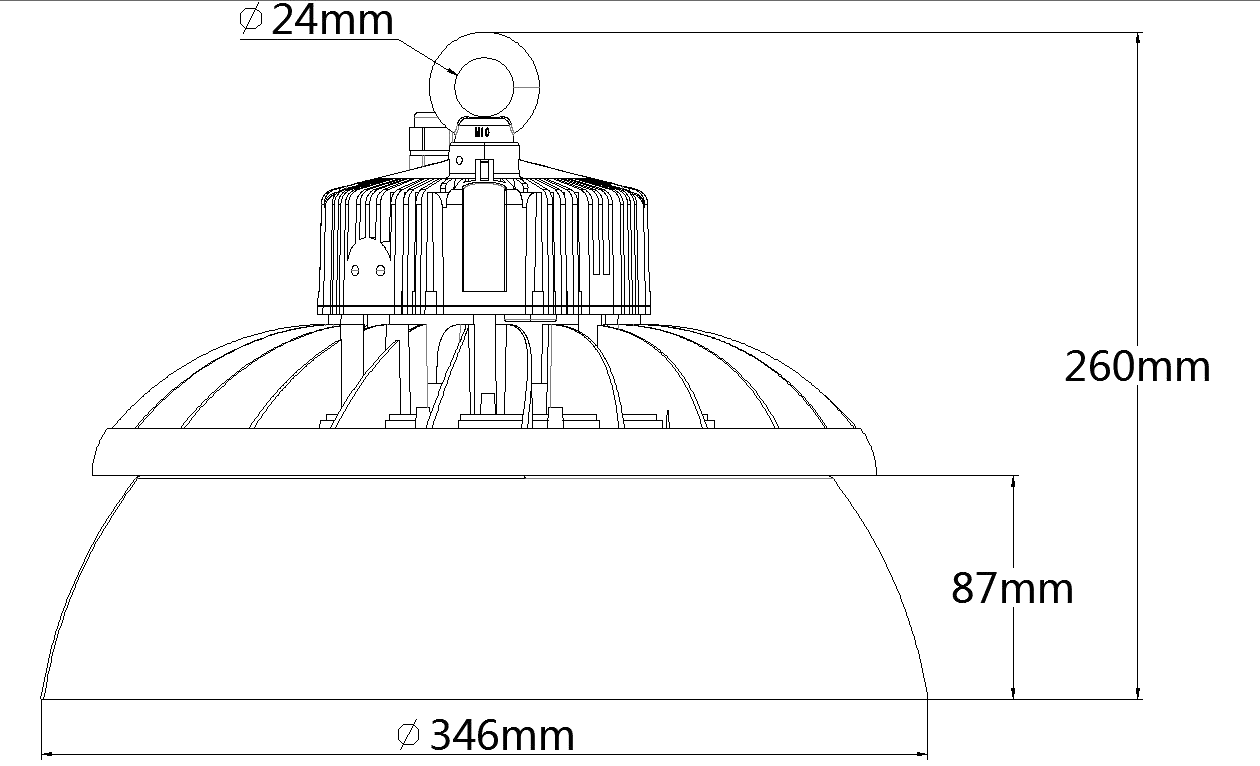

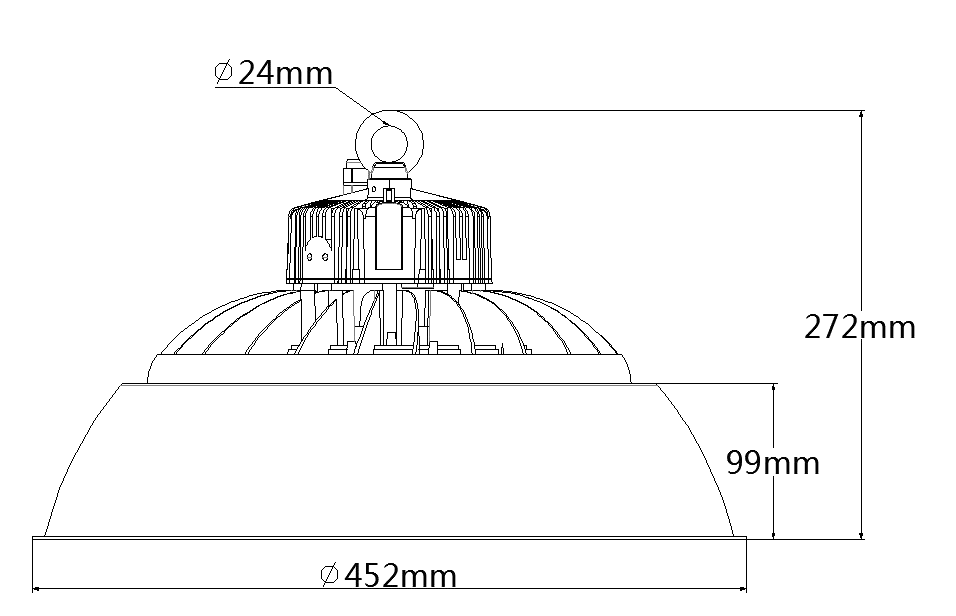

Dimension (unit: mm)

(Lamp Body+PC cover) UFOH-100	UFOH-150

UFOH-150	UFOH-200

Ⅲ High Bay Datasheet

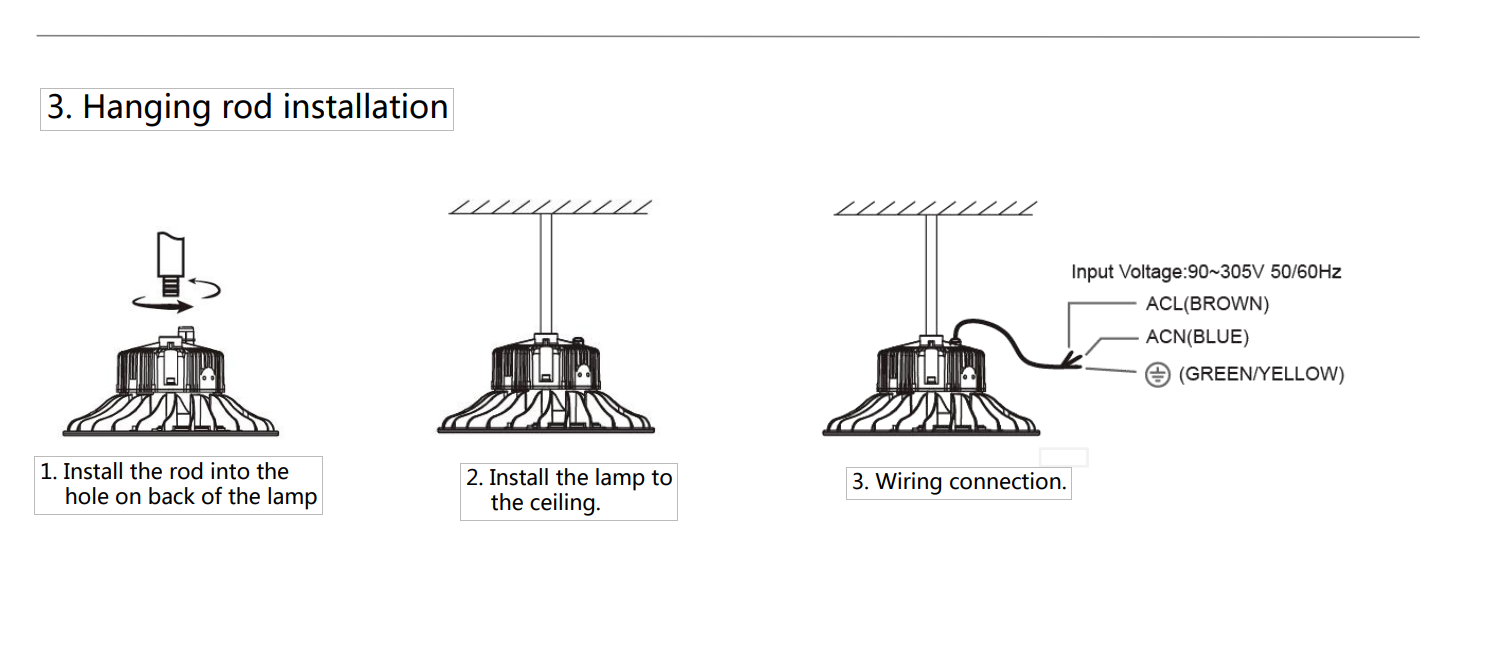

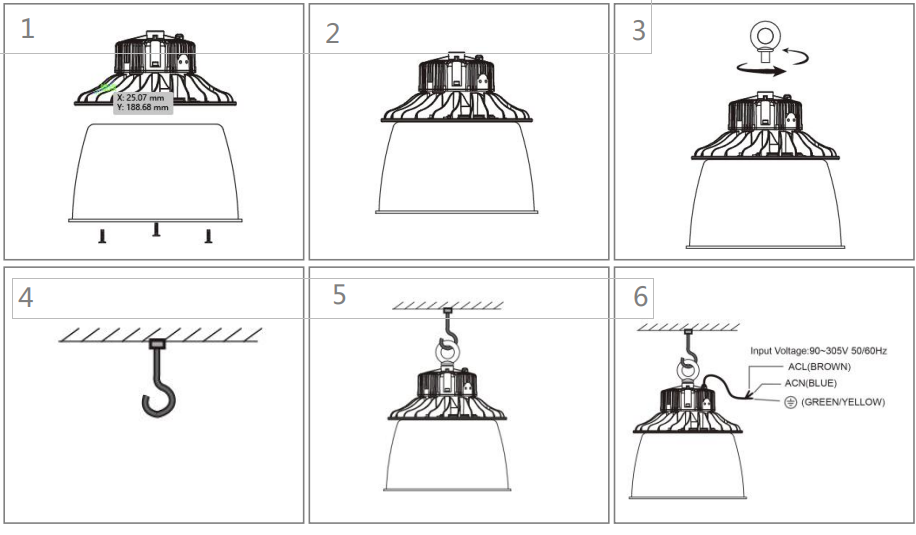

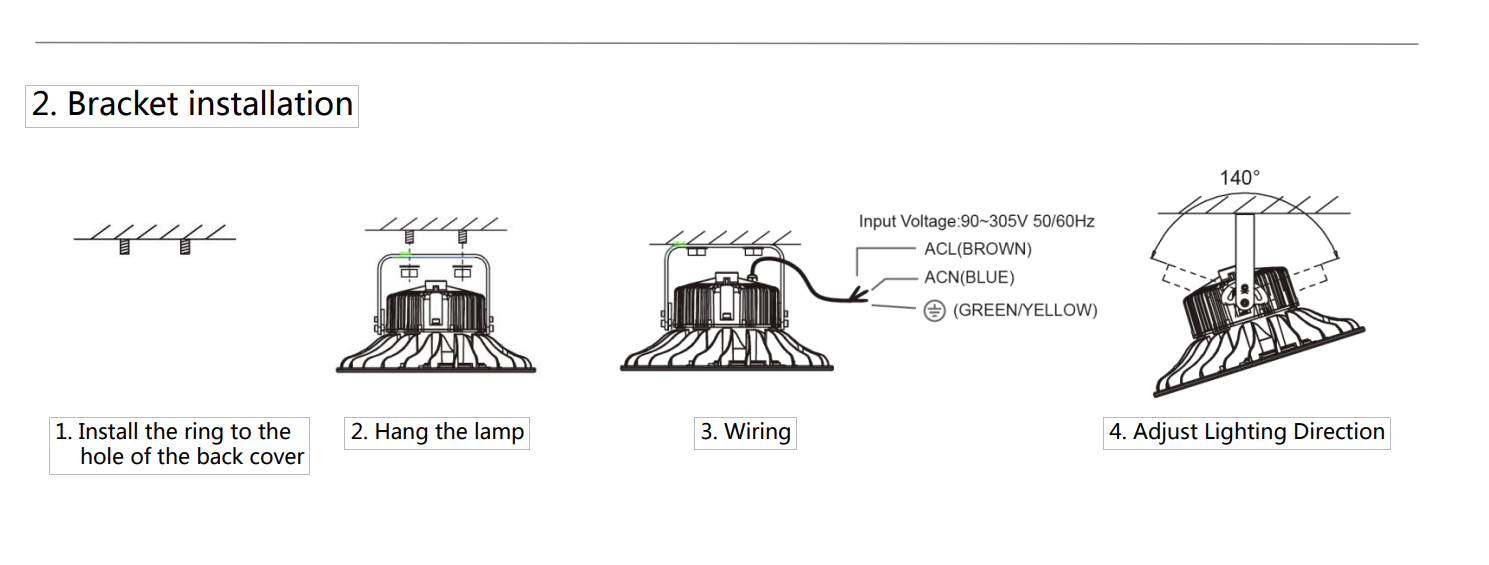

4. Lampshade installation (DIY)

1. Put the lampshade in corresponding position with the crew holes

2. tighten with screws.

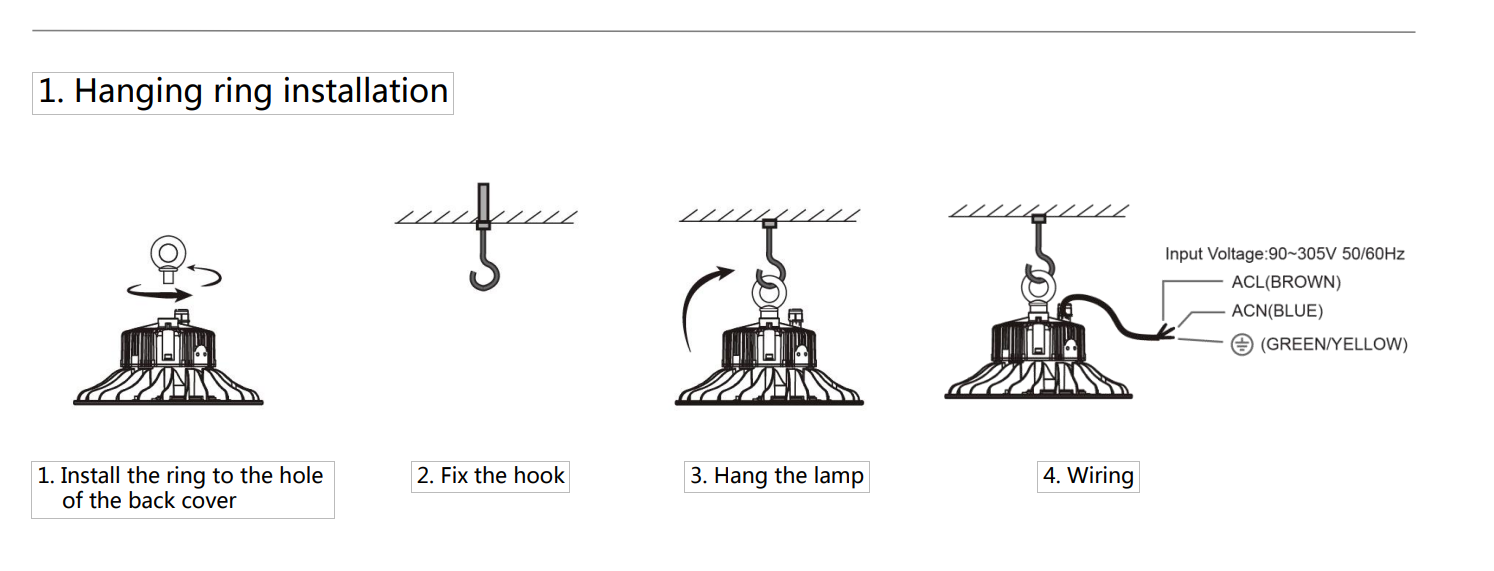

3. Install the ring to the hole of the

back cover.

4. Fix the hock.

5. Hang the lamp.

6. wiring.

Installation:

◆ Install expansion bolt or hook in advance at the location where high bay is to be installed (Load

capacity of expansion bolt or hook is three times greater than the weight of high bay).

◆ Put the bracket of fixture into the pre-fixed expansion bolts and tighten the screws.

◆ Fix screws and adjust the fixture to the angle you need (The angle of rotation of the bracket is 120°). ◆ Suitable for hook & hanging chain installation.

Attention:

1. Pls read the installation instruction carefully before installation;

2. The brown wire is live line (L), the blue wire is zero line (N) and the green yellow wire is earth line ( );3. Do not close to the place with heat source to prevent damaging the UFO for high temperature;

4. Ensure right wiring;

5. Do not disassemble the UFO without permission;

6. Pls cut off the power source before installation or repair;

Microwave sensors indicate

ot recommended for outdoor use. Rain can trigger it by mistake。

They become less responsive to objects moving at constant speed。

No vibration in the mounting position。

Require power supply ripple less than 100mv 。

The range and angle of the sensor will be affected by the surrounding environment。

Microwaves have a penetrating effect, but not through reinforced concrete walls or metal objects。

Single core wire is recommended for terminal。
